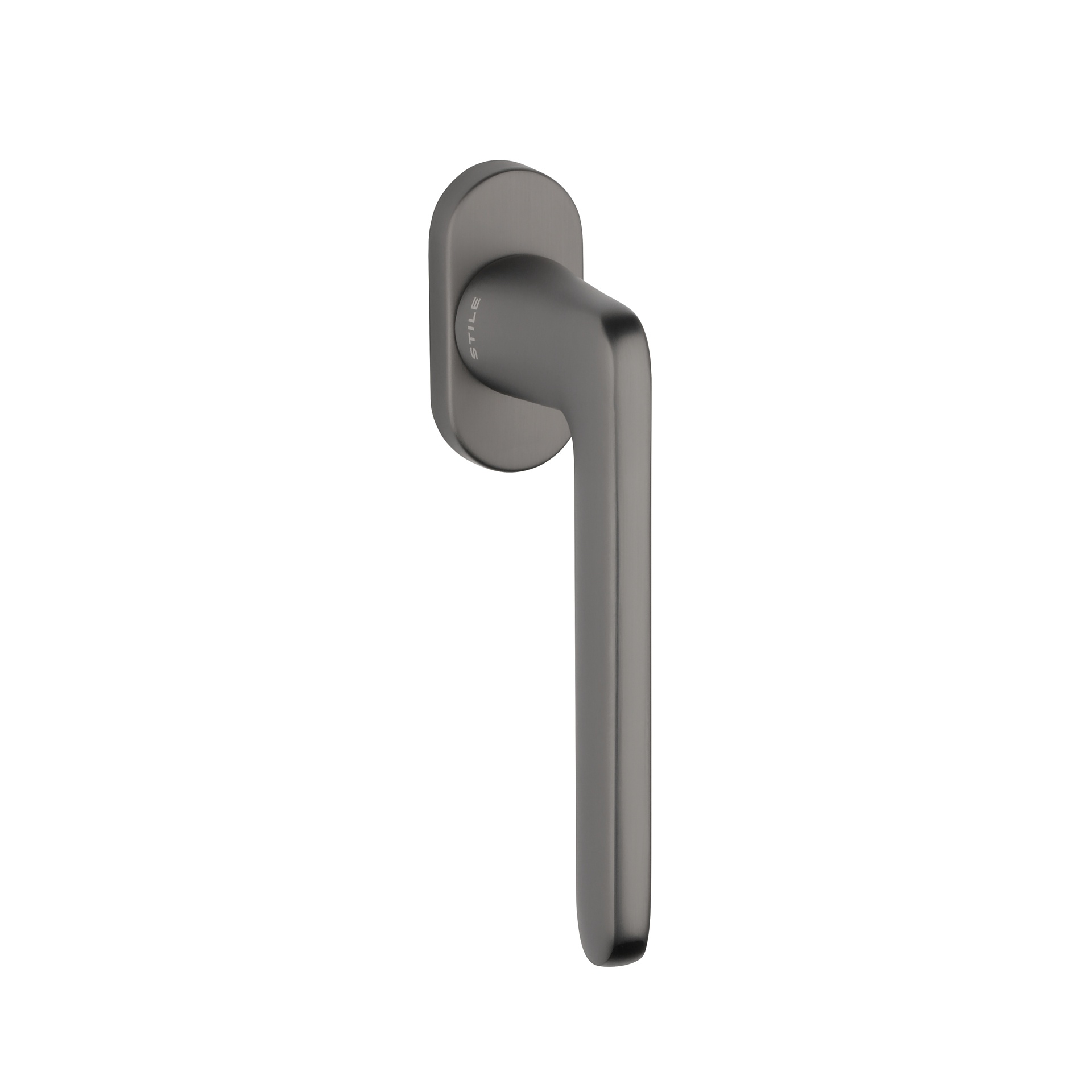

The titanium window handle 'UTA' in a tilt and turn version has a narrow, elegant handle with a rounded corner that fits well in the hand.
The window handles are based on aluminium. Aluminium is known for the fact that the applied coating adheres very well, which gives these handles an extra long colour fastness.

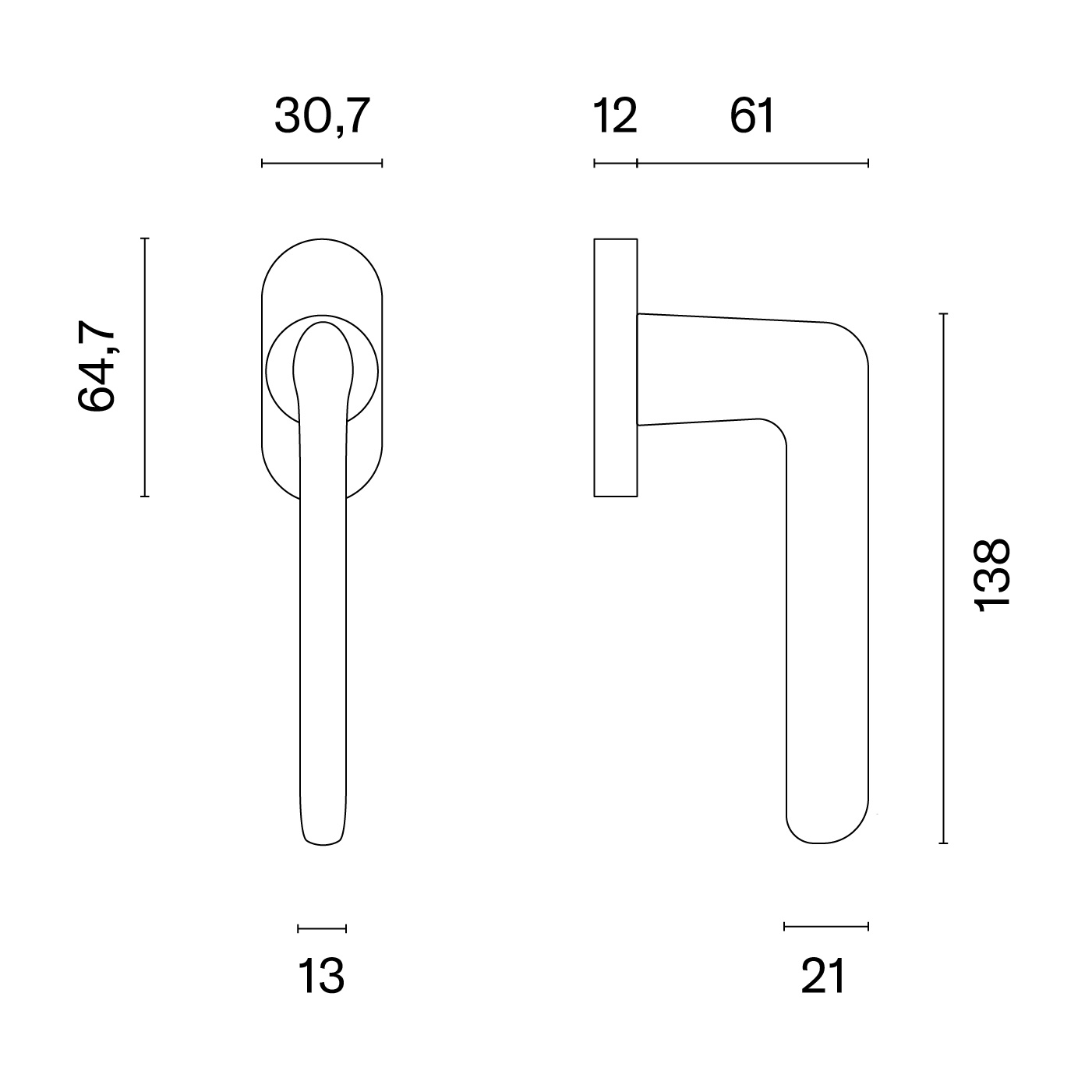

The 21x13 mm handle is mounted on an oval rosette measuring 64.7x30.7x12 mm.
This anthracite window handle, with the STILE logo, is supplied per piece including mounting materials and pin of 7x7x35 mm. The mounting holes are at a distance of 43 mm
Create an interior that meets all your needs with STILE door handles and window handles.
Choose between a left or right window handle in the scroll menu at the top!
Both window handles rotate 360°. The only difference is the location of the STILE logo.
With a left window handle the logo is on the left, with a right window handle the logo is on the right.
base | aluminum |
execution | turn-tilt function |
colour | titanium / anthracite |
rosette dimensions | 64.7x30.7x12 mm |
depth | 73 mm |
drilling distance | 43 mm |
pen | 7x7x35 mm |
handle dimensions | 21x13 mm |
mounting material | 2 bolts M5 x 40 mm included |
