Description

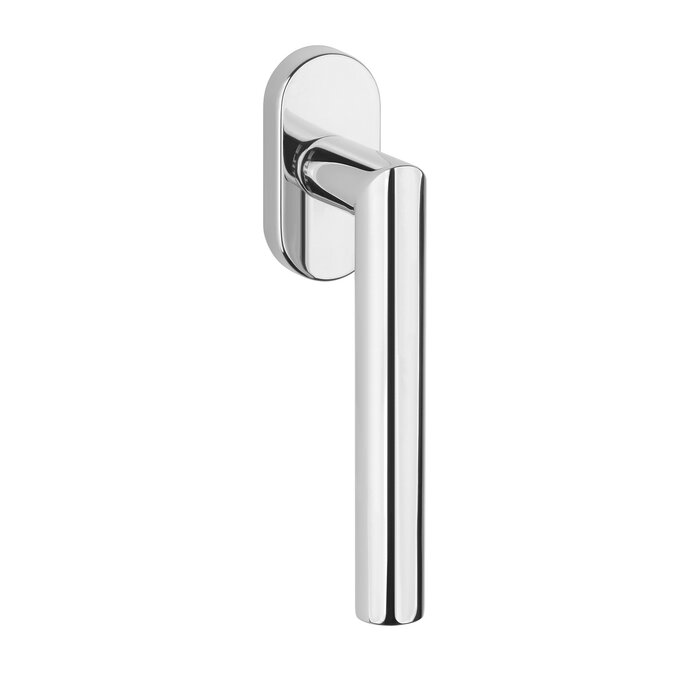

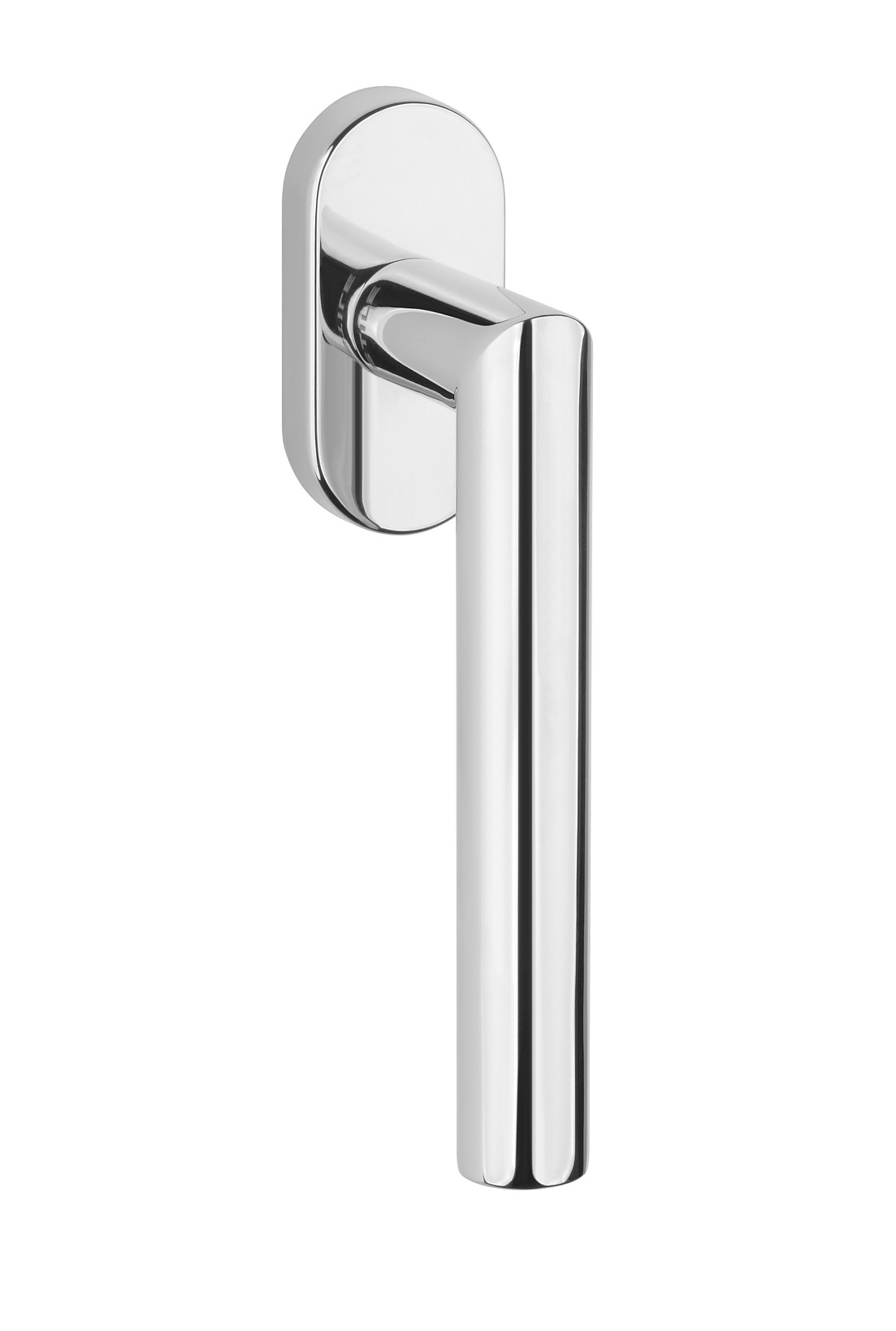

Chrome polished STILE window handle YUZA on an oval rosette with a round handle at an angle of 90°
Article code: ST O YUZA R CP-L
The chrome polished window handle 'YUZA' in turn-tilt design has a round handle at an angle of 90° that fits very well in the hand.
The window handles have aluminum as a base. Aluminum is known that the applied coating adheres very well, which means that these handles have an extra long color fastness.
The 22.5x9 mm handle is mounted on an oval rosette of 64.7x30.7x12 mm.
This window handle with the STILE logo is supplied per piece including mounting materials and pin of 7x7x35 mm. The mounting holes are spaced 43 mm apart
By combining these window handles with the matching door handles from STILE, your interior will meet all your wishes.
Choose between a left or right window handle at the top of the scrolling menu!
Both window handles rotate 360°. The only difference is the location of the STILE logo.
With a left window handle the logo is on the left, with a right window handle the logo is on the right.
| base | aluminium |
| performance | turn-tilt function |
| colour | Chrome polished |
| rosette dimensions | 64.7x30.7x12mm |
| depth | 74.5mm |
| drilling distance | 43mm |
| marker | 7x7x35mm |
| handle dimensions | 22.5x9mm |
| mounting material | 2 bolts M5 x 40 mm included |
