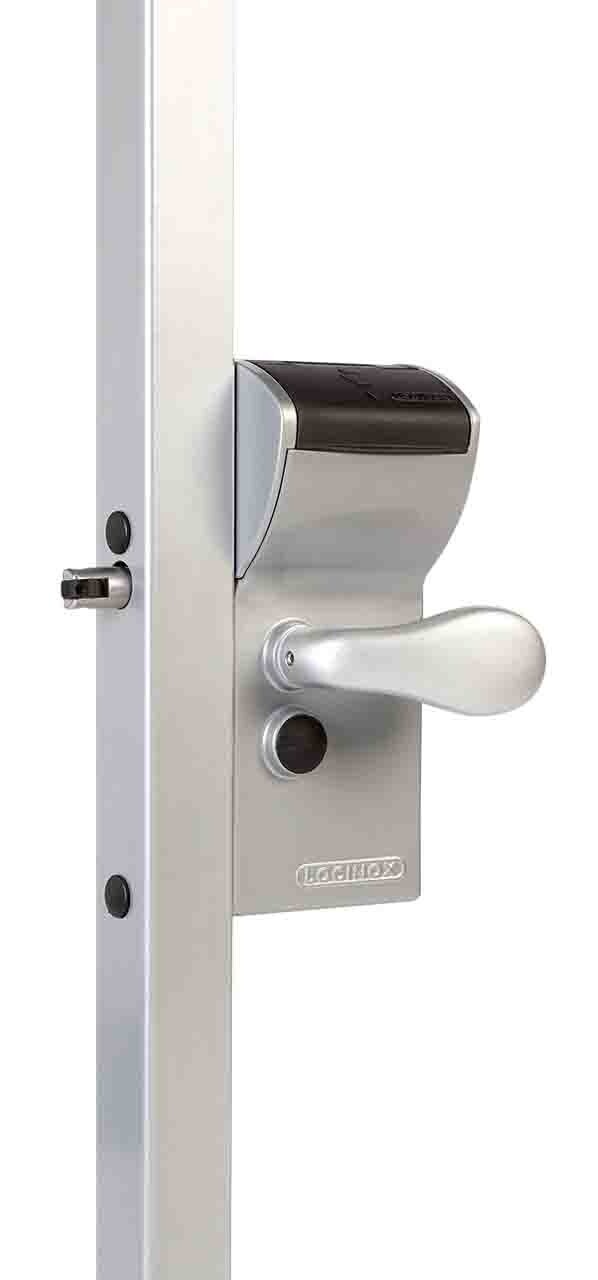

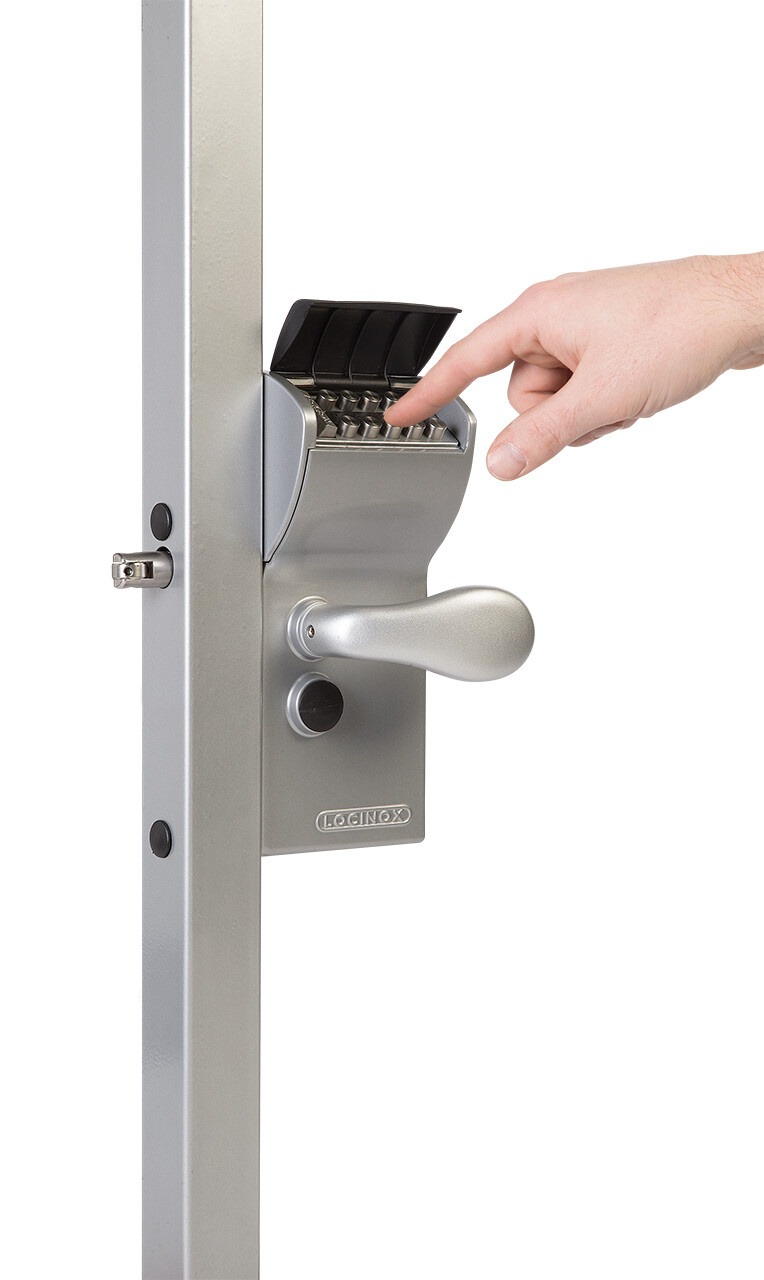

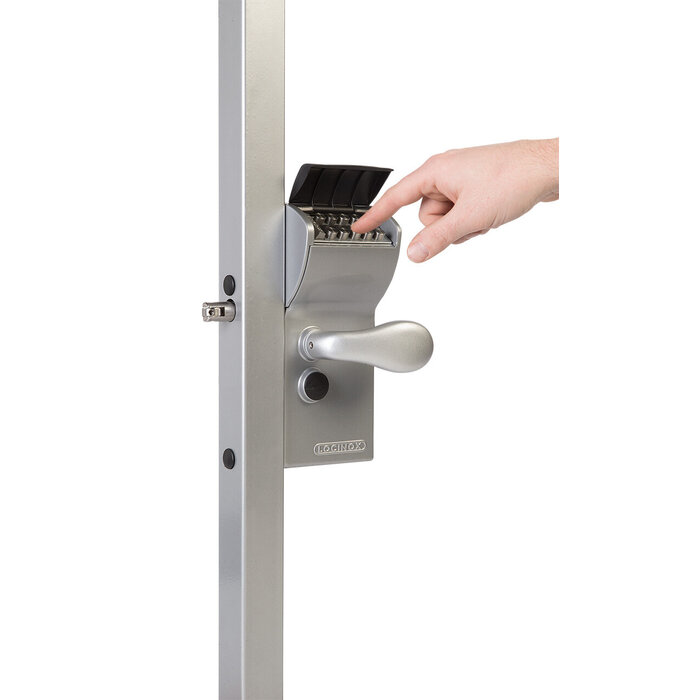

Locinox free Vinci mechanical code lock LFKQ40X1LCR with door handle

Discover the Superior mechanical code lock with an aluminum housing and stainless steel interior with secured entrance and free exit suitable for square profiles from 40 to 60 mm.

This lock provides reliable access control without batteries or electricity, allowing you to equip any gate quickly and easily.

With 20mm of continuous adjustability for both pins, you can adjust each port for optimal locking. The solid stainless steel night pin with 23 mm depth lock ensures a secure closure.

For a quick and extremely precise installation, we recommend using the Drill-Fix drilling jig. The FREE VINCI code lock is supplied with door handle 3006CR.

The code lock is available in 3 different colors. Make your choice in the scrolling menu at the top right.

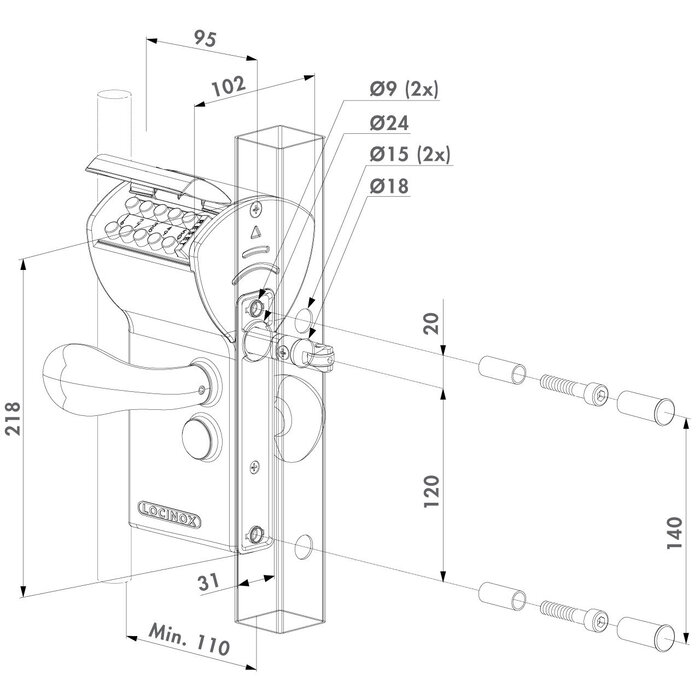

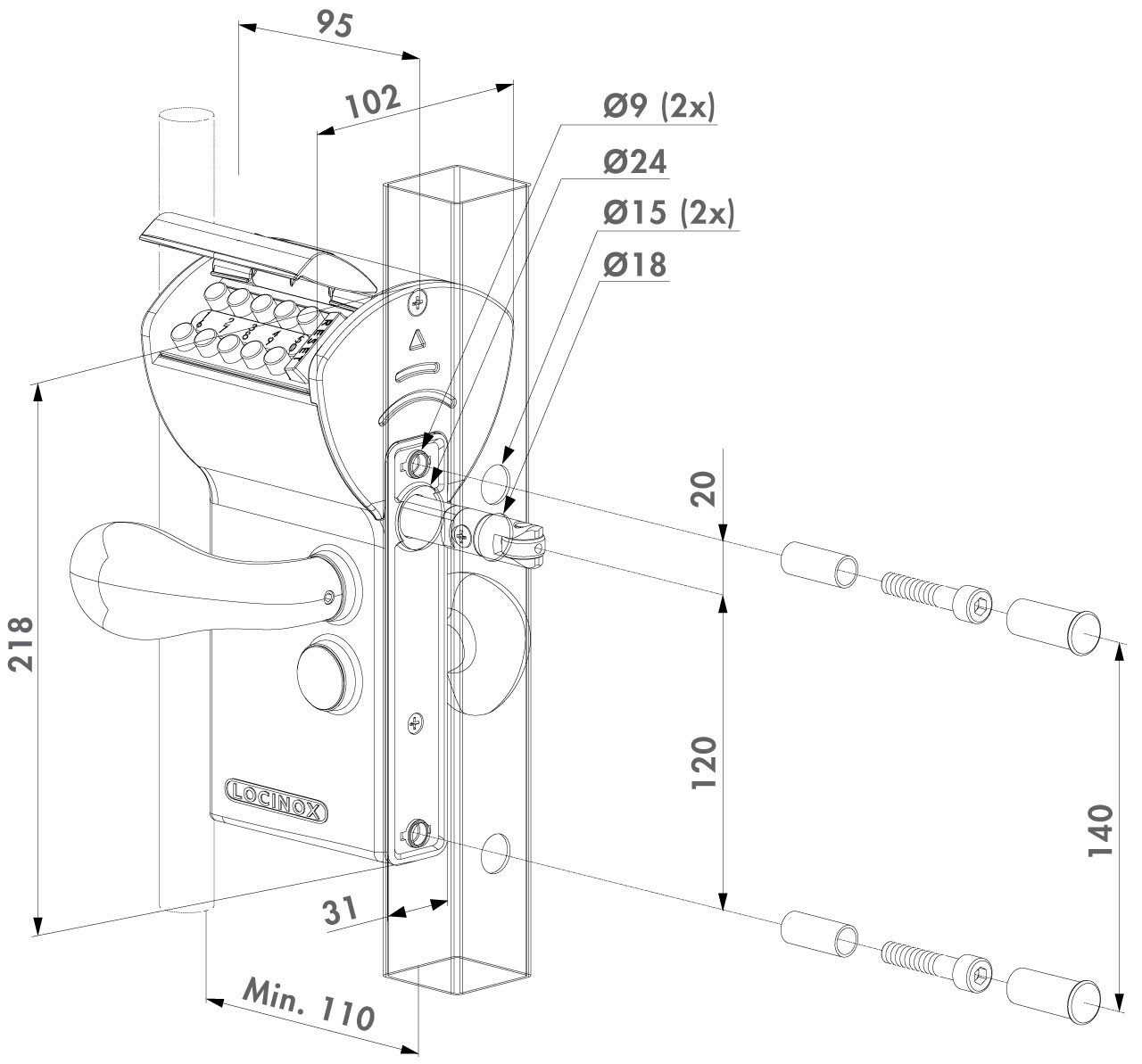

You will find all dimensions on the attached drawing.

Download the manual here.

Read specific features here:

• ISO 9227 KTL / Electrostatic dip painted lock case withstands 1000 hours salt spray test
• 1 side secured with code, other side freely accessible
• Single-sided code keyboard with stainless steel push buttons
• Polyamide cover plate: protects against rain and dust
• Simple and fast code setup or change
• With adjustable roll top for easy closure
• Extremely robust and user-friendly mechanism
• Automatic code reset after opening with the handles
• Anti-code detection with internal security pressure plate
• Interchangeable with all Locinox swing gate locks
