Description
Weld-on hinges 160x20 mm made of bare steel with steel pin and brass ring - 12 pieces
Article code: DS6510.000.1600
This weld-on hinge is very often chosen for general use. The heavier steel Paumelle with also a steel pin can be used in many places, such as on access doors in groundwater and road construction. A major advantage is that by using a weld-on hinge, the door, window or hatch can be opened 180° to create a free passage.
The versatile weld-on hinge for steel doors has a brass ring for a lubricating effect. You notice the high quality of this DX welding hinge due to the wider welding edge, but also due to the extra length and thickness of the pin, so that there is practically no play on the convex knot.
Delivery and price is for one pack of 12 pieces.
Packing unit (pieces) | 12 |
Capacity Per 2 (KG) | 80 |

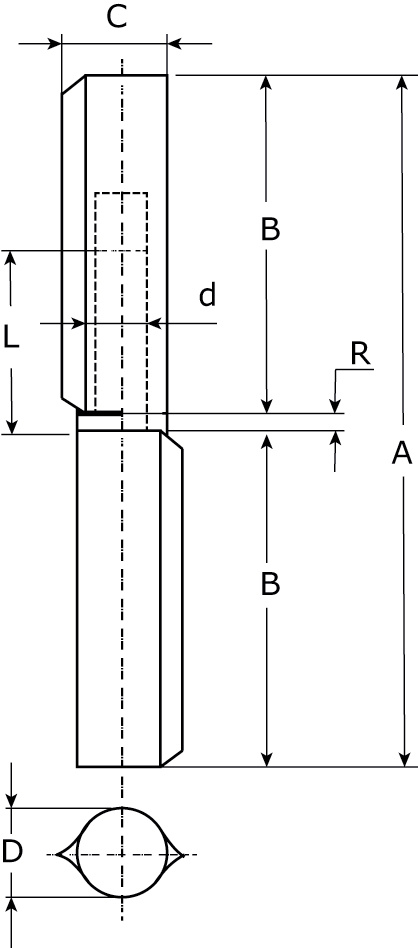

A (mm) |
160 |
B (mm) |
79 |
C (mm) |
25 |
D (mm) |
20 |
d (mm) |
14 |
L (mm) |
41 |
R (mm) |
2 |
