Description

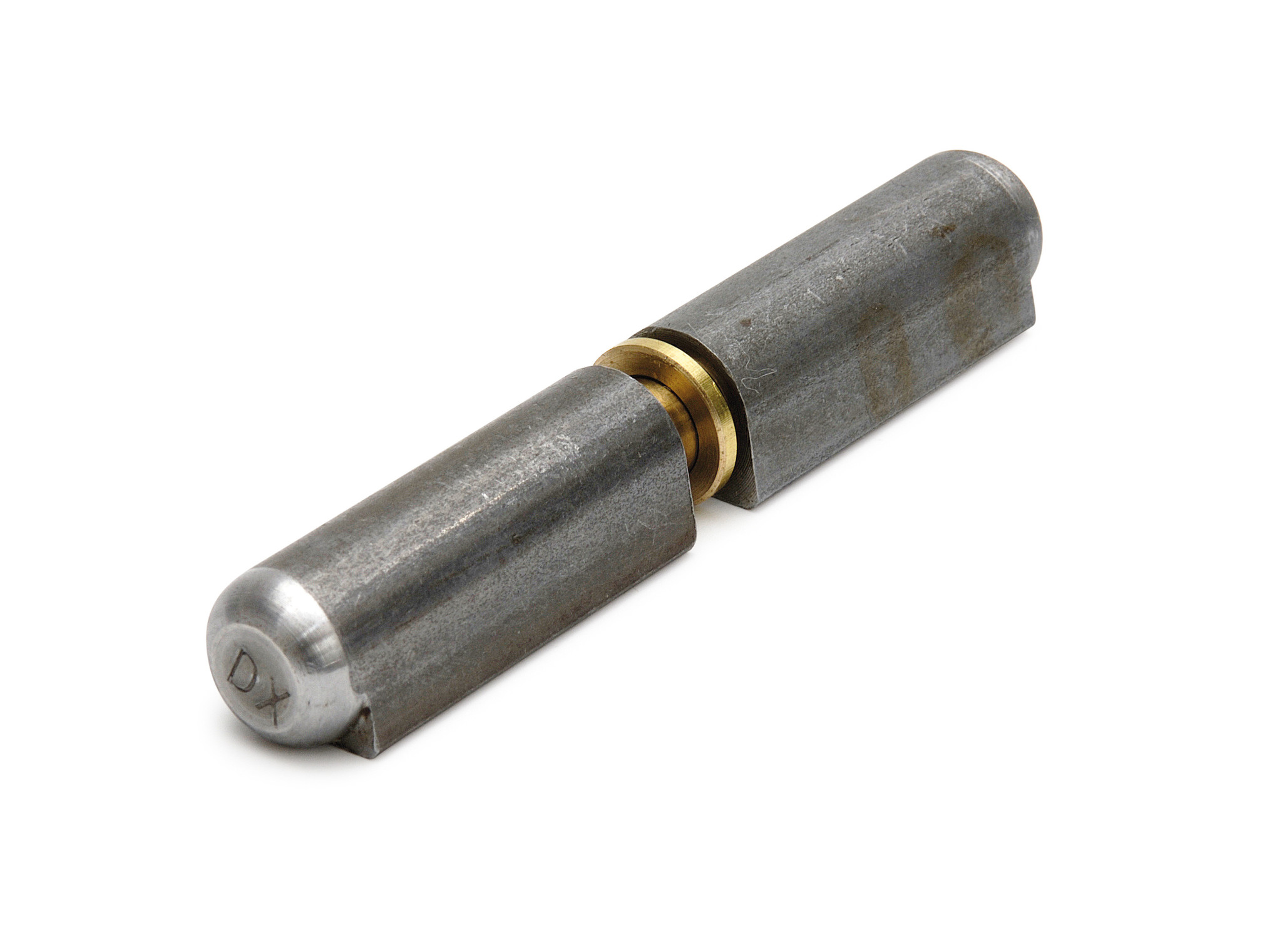

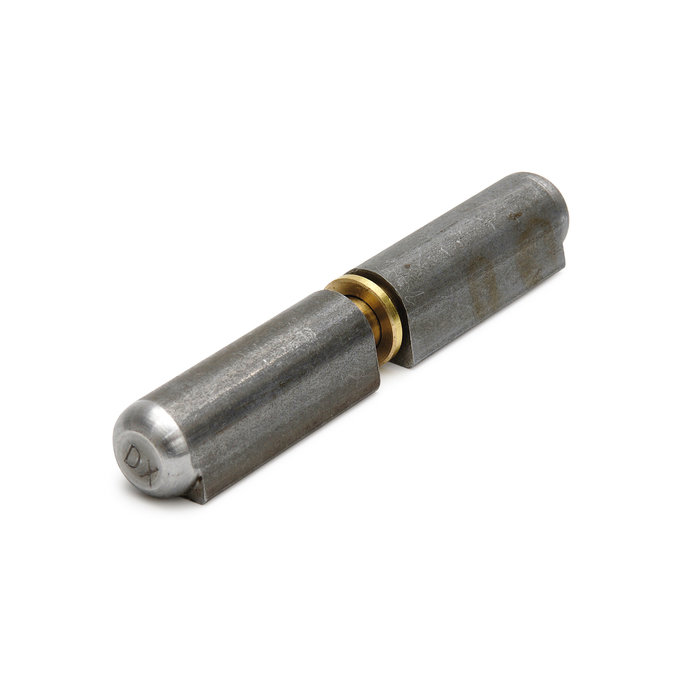

Weld-on hinges 50x8 mm made of bare steel with a brass pin and ring for optimal lubrication - 24 pieces
Article code: DS6510.001.0500
Are you looking for a sustainable solution for hanging your steel doors, windows or shutters? With the steel Paumelle with brass pin and ring you have the ideal solution. This hinge can be used in many places, especially for doors that are used very often. A major advantage is that by using a weld-on hinge, the door, window or hatch can be opened 180° to create a free passage.
The versatile weld-on hinge for steel doors has a brass pin and ring, which ensures optimum lubrication and therefore a long service life. You notice the high quality of this DX welding hinge due to the wider welding edge, but also due to the extra length and thickness of the pin, so that there is practically no play on the convex knot.
Prevent welding spatter and use the professional welding spray IBFM for welding hinges.
Delivery and price is for one pack of 24 pieces.
| Packing unit (pieces) | 24 |
| Capacity Per 2 (KG) | 20 |

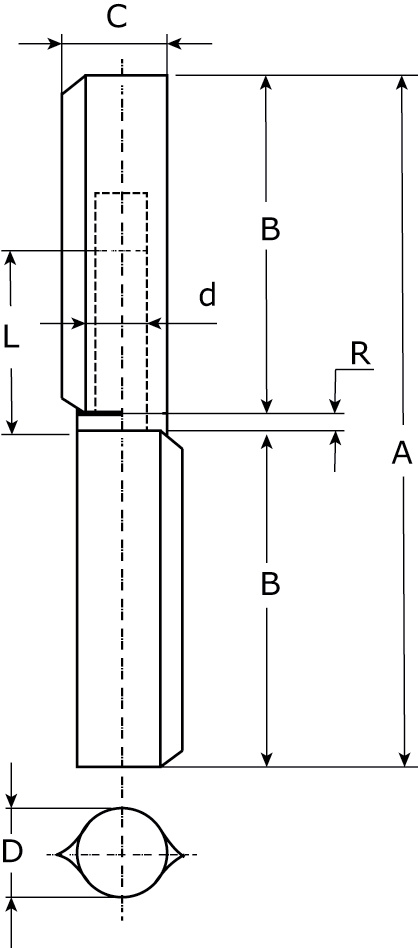

A (mm) |
50 |
B (mm) |
24 |
C (mm) |
10 |
D (mm) |
8 |
d (mm) |
5 |
L (mm) |
14 |
R (mm) |
2 |
