Description

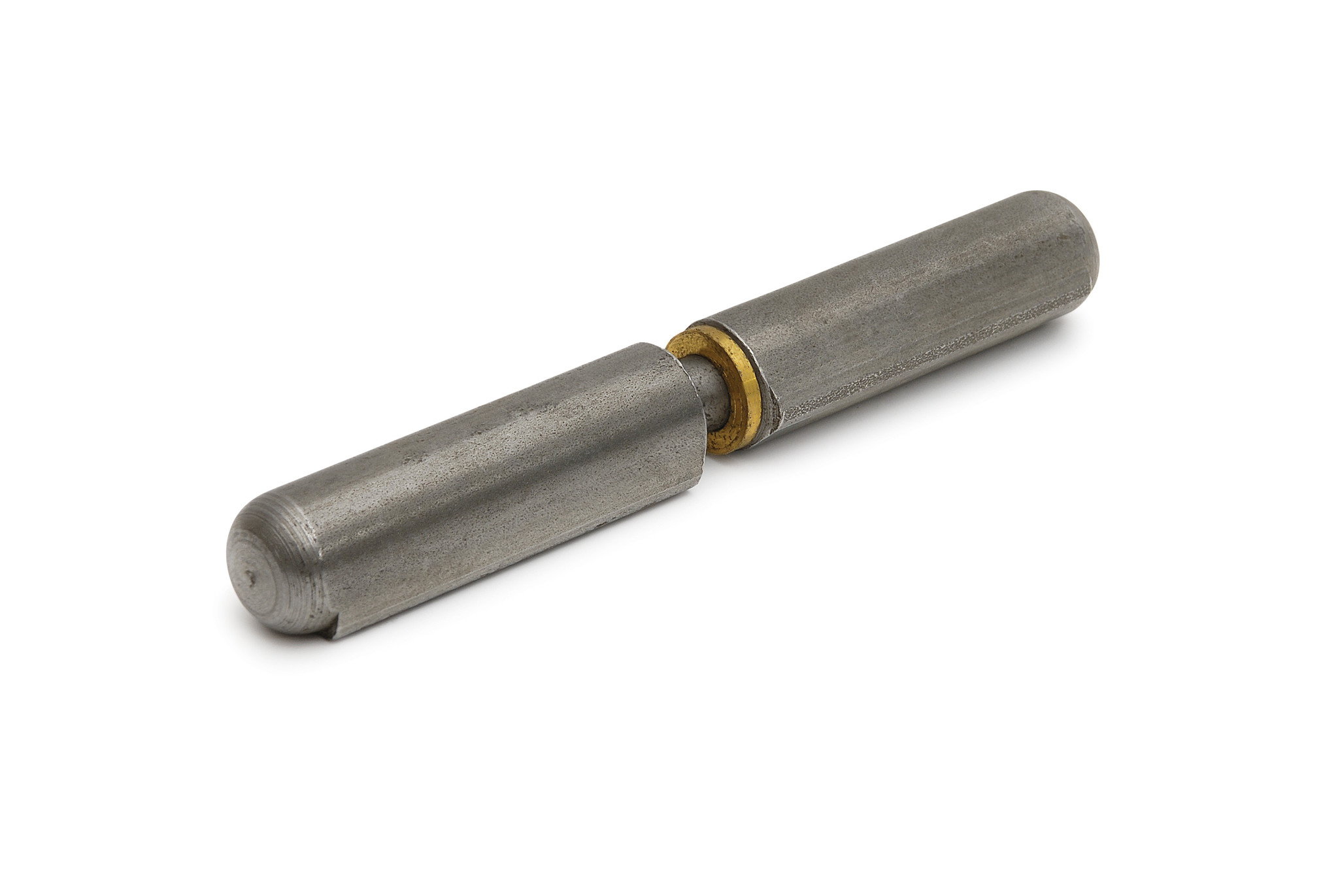

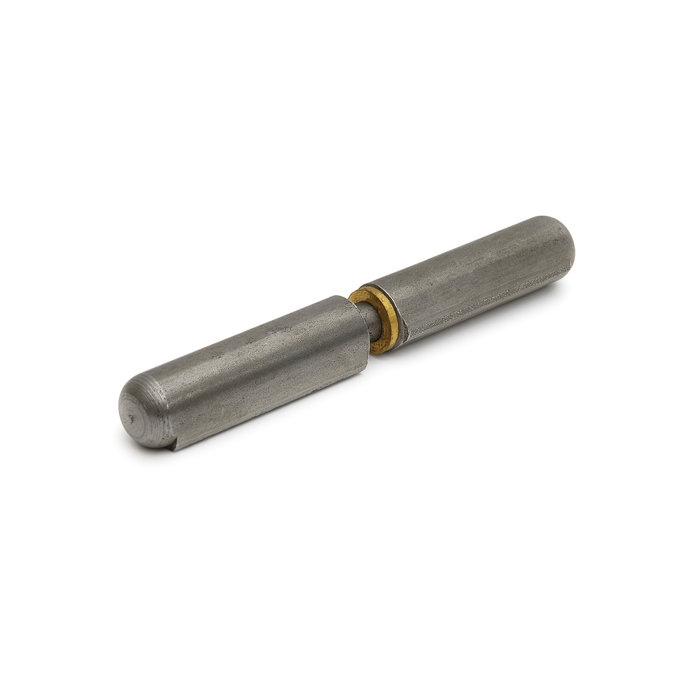

Weld-on hinges 60x10 mm made of bare steel with steel pin and brass ring - 24 pieces
Article code: DS6010.000.0600
This simple, yet very functional, weld-on hinge has a convex head and a self-lubricating brass ring. By using a brass ring, a long life is guaranteed.
You will certainly find the right welding hinge among the different sizes that are available of this type to weld on your steel construction. The great advantage of weld-on hinges is that the door, window or hatch can be opened 180°, which gives you the opportunity to ensure a free passage.
To avoid welding spatter, you have the option of first spraying the welding hinges with the professional welding spray IBFM for welding hinges
Delivery and price is for one pack of 24 pieces.
Packing unit (pieces) | 24 |
Capacity Per 2 (KG) | 20 |

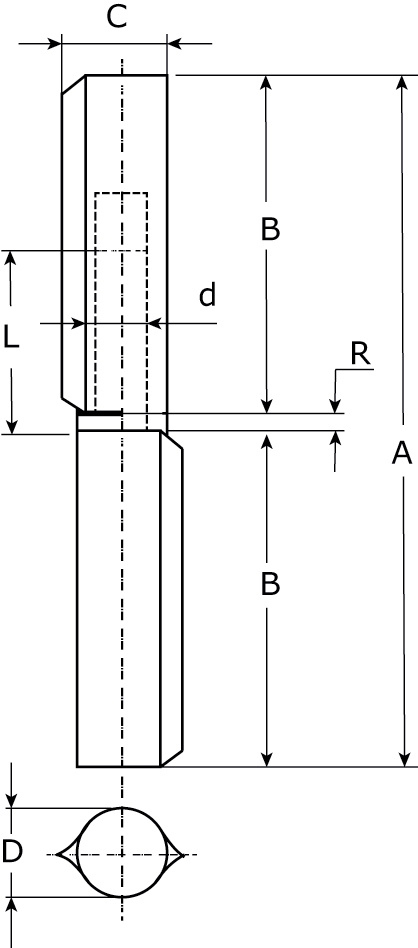

A (mm) |
60 |
B (mm) |
29 |
C (mm) |
11 |
D (mm) |
10 |
d (mm) |
6 |
L (mm) |
17 |
R (mm) |
2 |
