Description

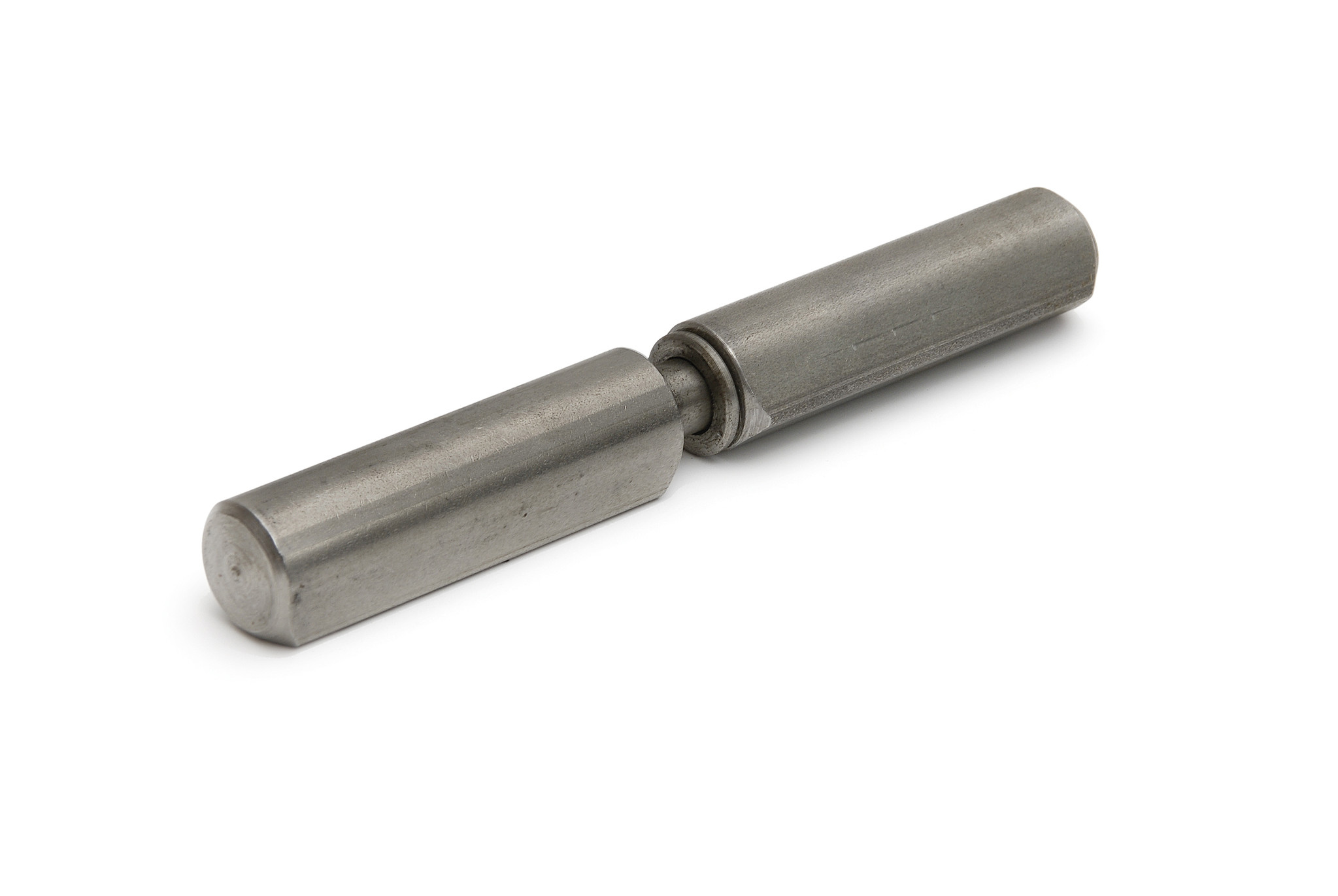

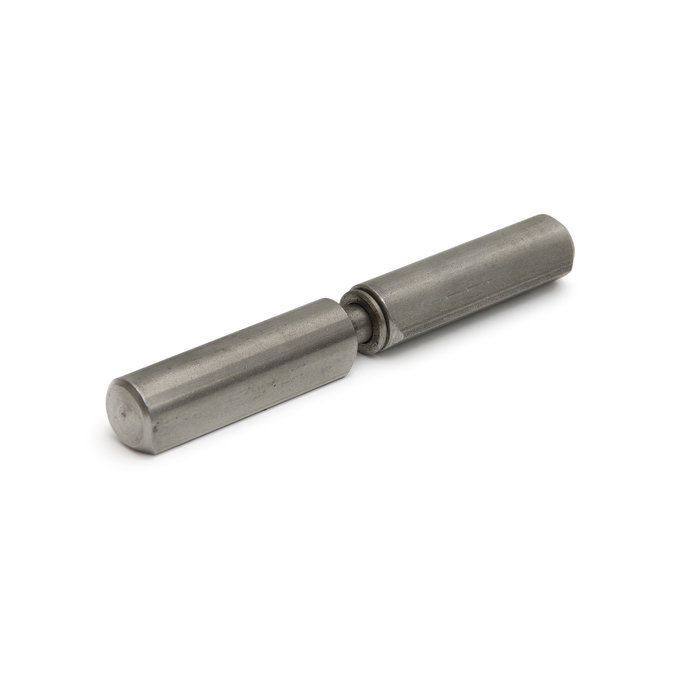

Weld-on hinges with flat head 40x10 mm in stainless steel 304 with stainless steel pin and ring - 24 pieces
Article code: DS6010.002.0412
Simple but very effective welding hinge. You should choose this type of weld-on hinge if you have to install doors, windows or shutters in damp rooms.
The weld-on hinges are made of stainless steel AISI 304, which means that they are corrosion-resistant hinges. Stainless steel quality 304 is used for this hinge because it is easier to weld.
A major advantage is that by using a weld-on hinge, the door, window or hatch can be opened 180° to create a free passage.
With this versatile weld-on hinge for steel doors, the ring and pin are also made of stainless steel.
Prevent welding spatter and use the professional welding spray IBFM for welding hinges.
Delivery and price is for one pack of 24 pieces.
Packing unit (pieces) | 24 |
Capacity Per 2 (KG) | 20 |

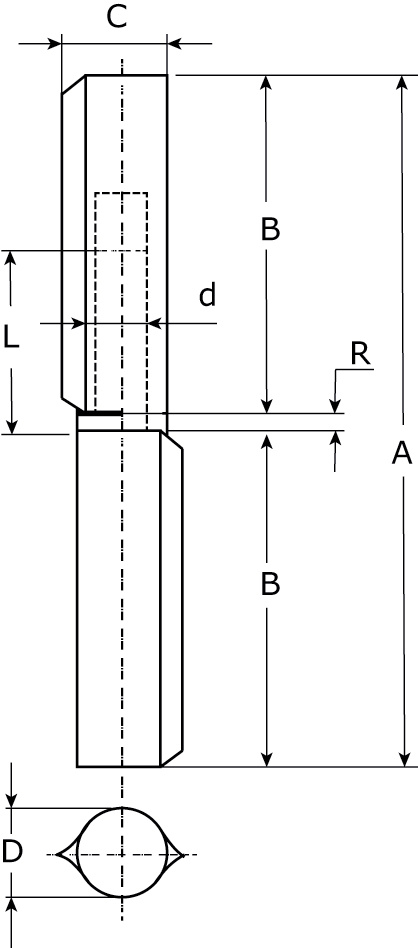

A (mm) |
40 |
B (mm) |
19 |
C (mm) |
11 |
D (mm) |
10 |
d (mm) |
6 |
L (mm) |
14 |
R (mm) |
2 |
