Description

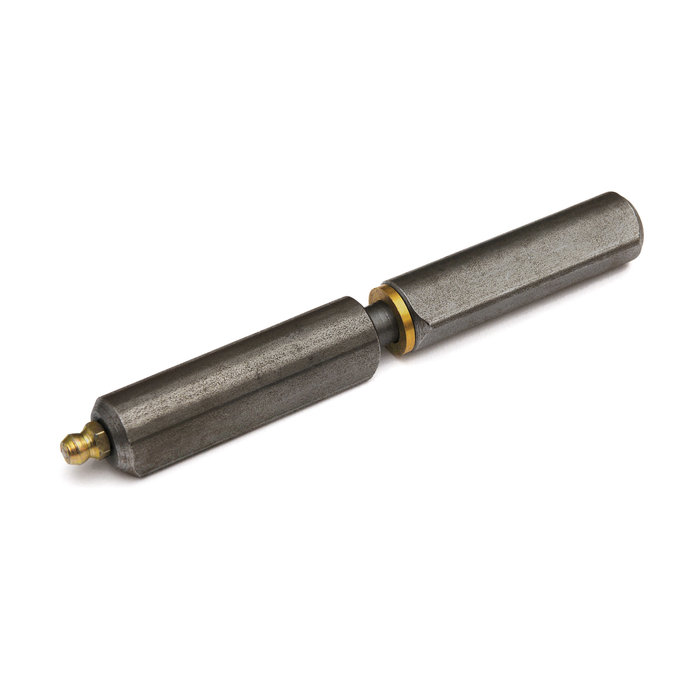

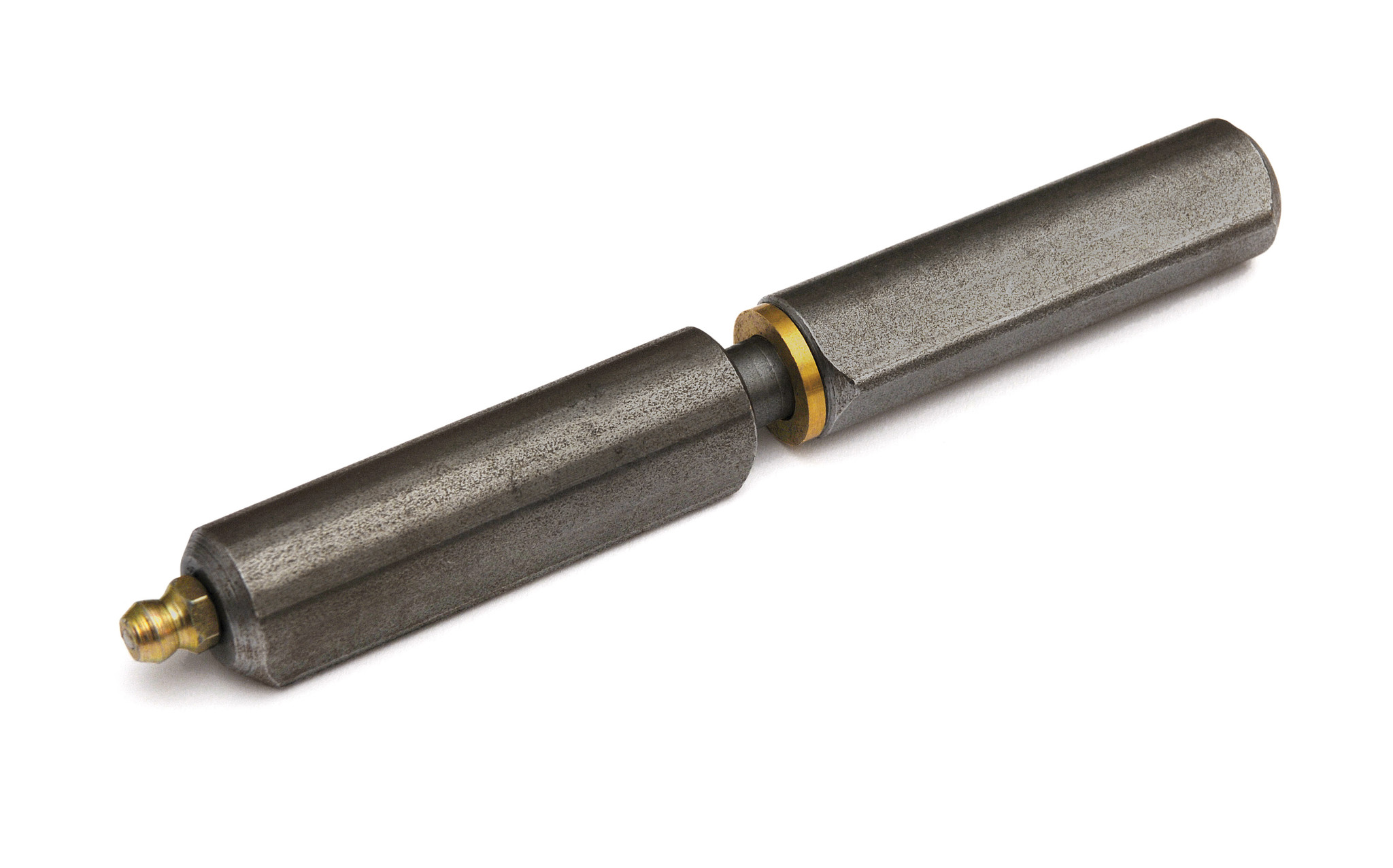

Weld-on hinges with grease nipple 100x14 mm made of bare steel with brass ring and steel pin - 24 pieces
Article code: DS6010.010.1000
This steel welding hinge with grease nipple ensures a long-lasting smooth operation. Although a brass ring is used around the steel pin, which has a self-lubricating effect and protects the steel, it is advisable for heavy doors to use a hinge with grease nipple in dusty environments.
The grease nipple at the top of the welding hinge allows you to lubricate the hinge regularly in order to reduce possible wear to a minimum. It will extend the life considerably. This hinge is therefore ideal for use on crane doors or doors of machines that are regularly opened and closed.
The big advantage of a weld-on hinge is that the door or hatch can be opened completely 180°, which gives you the space to create a free passage.
Prevent welding spatter and use the professional welding spray IBFM for welding hinges.
Delivery and price is for one pack of 24 pieces.
| Packing unit (pieces) | 24 |
| Capacity Per 2 (KG) | 50 |

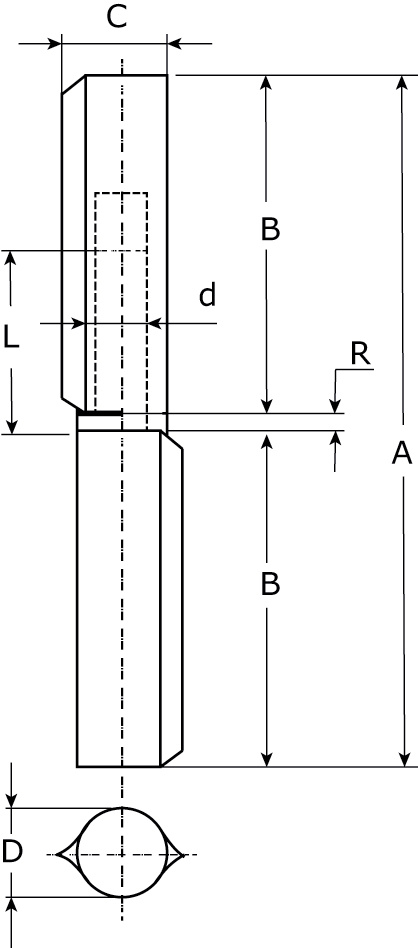

A (mm) |
100 |
B (mm) |
49 |
C (mm) |
16 |
D (mm) |
14 |
d (mm) |
8 |
L (mm) |
23 |
R (mm) |
2 |
