Description

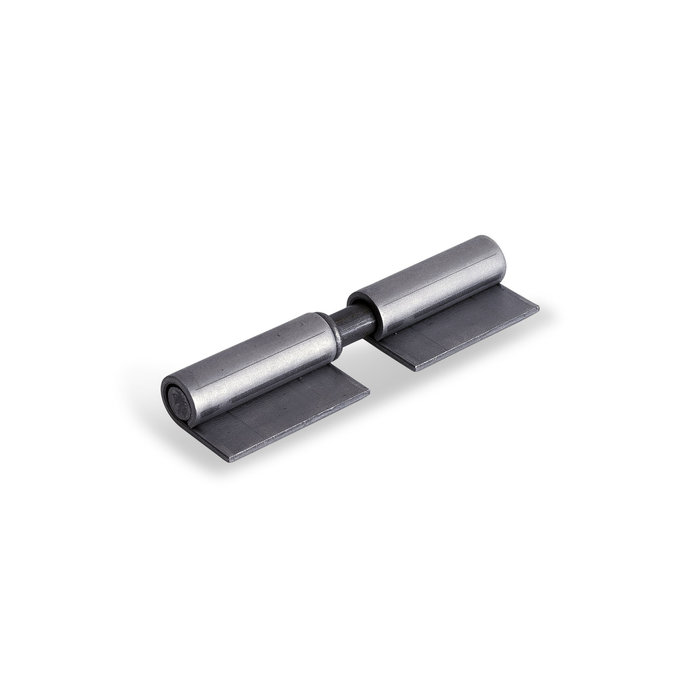

Weld-on hinges with sheet of 120x12 mm made of bare steel with separate steel pin and ring - 10 pieces
Article code: DS6010.015.1200

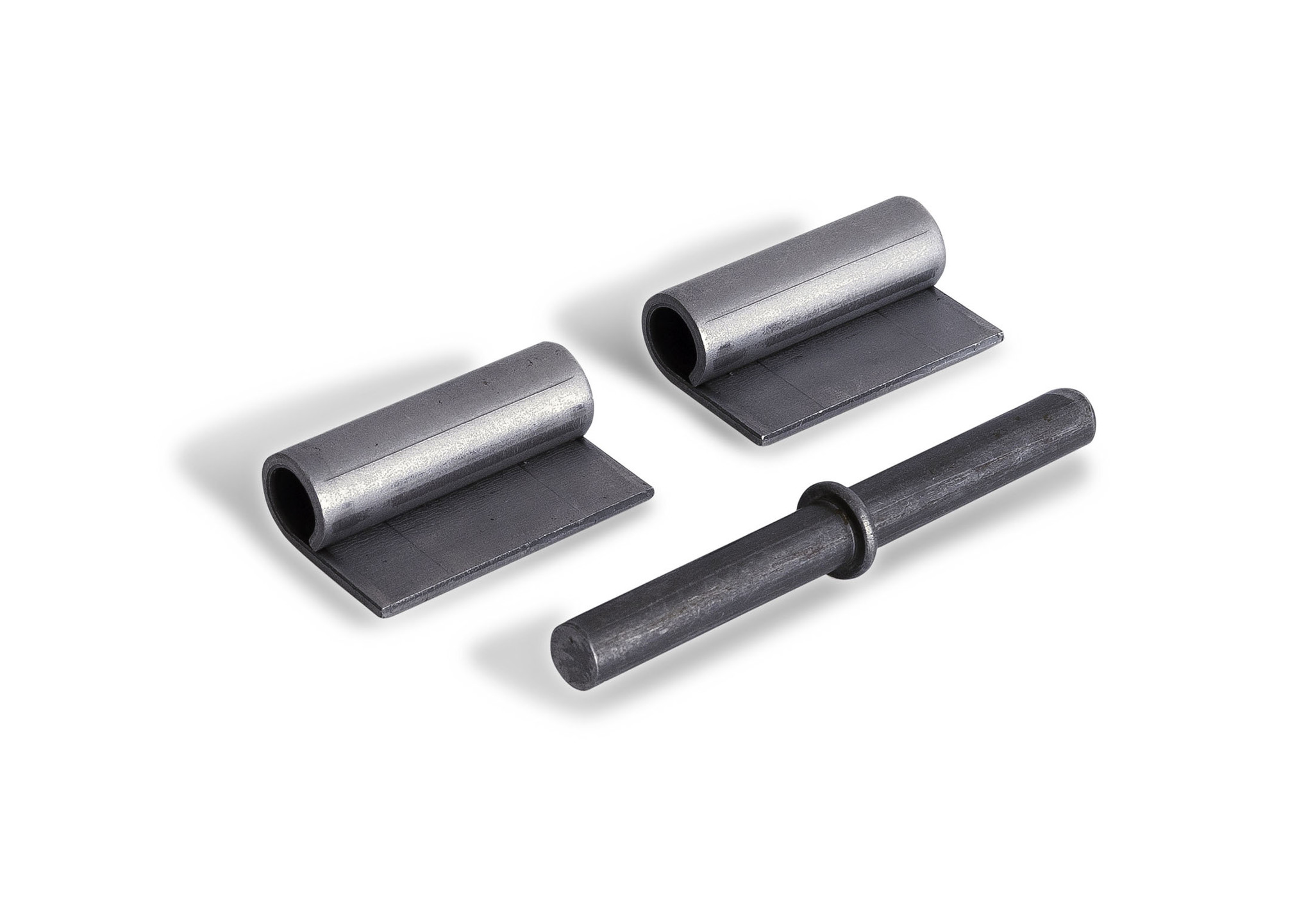

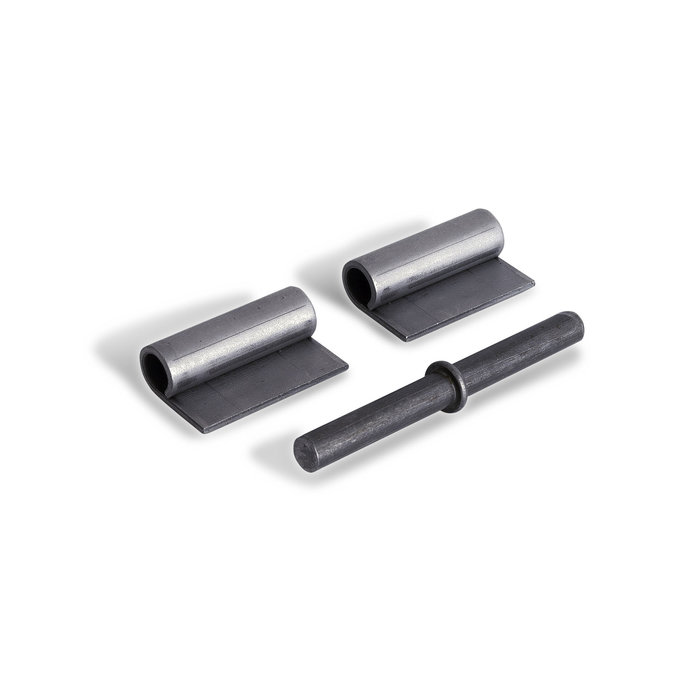

Welding a weld-on hinge with a blade is considerably easier than welding a standard weld-on hinge. By using a separate pin, these hinges can be used on both the left and the right.
The possibilities where one can use this Paumelle are therefore very diverse. With a weld-on hinge you are able to open your door, window or hatch fully 180°, which gives you the space to create a free passage.
By spraying your hinges in advance with the professional IBFM anti-splash spray, you are ready faster to ensure a neat finish.
The price is for one pack of 10 pieces
Packing unit (pieces) | 10 |
Capacity Per 2 (KG) | 60 |

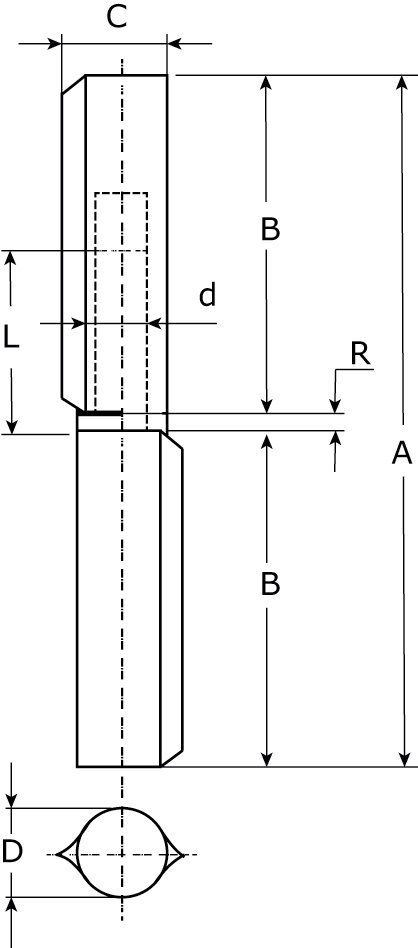

A (mm) |
120 |
B (mm) |
60 |
C (mm) |
45 |
D (mm) |
21 |
d (mm) |
12 |
L (mm) |
60 |
R (mm) |
3 |
