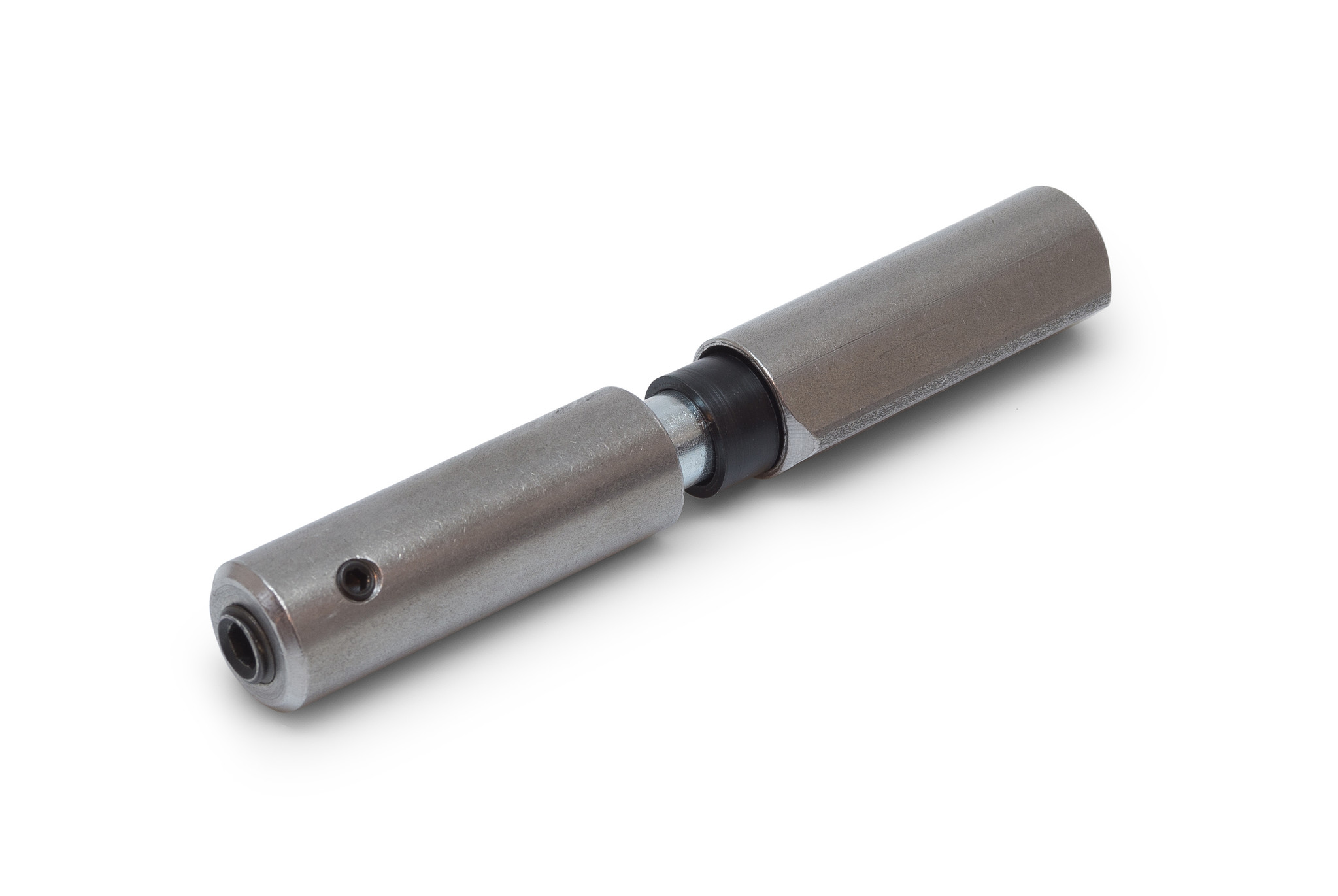

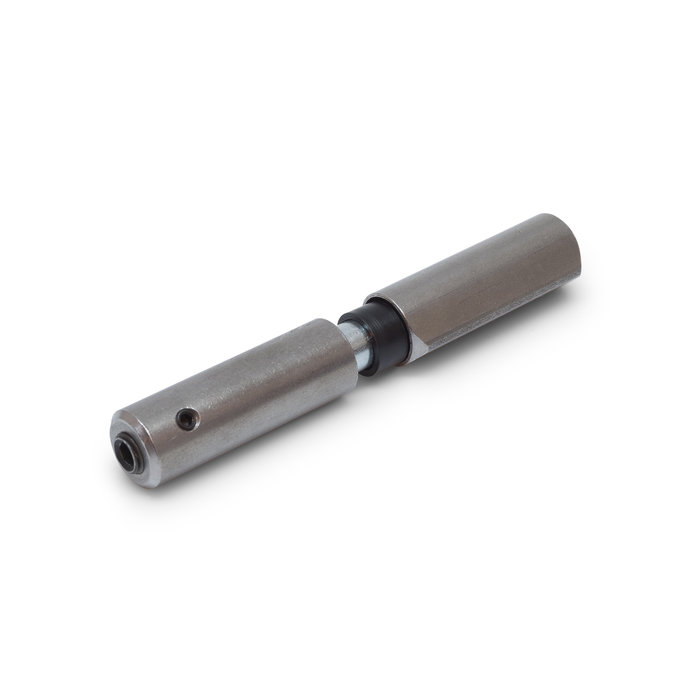

With this adjustable hinge you are able to adjust the hinge correctly after welding. The separate pin gives you an adjustment range of no less than 16 mm. The places where these paumelles can be used are very different, but especially in all possible places that are used intensively and are subject to pressure.
With this hinge you are able to adjust your door precisely. Even after prolonged use and due to vibrations, it is possible that a door will droop. You can adjust them perfectly with this hinge.
In addition, a door, window or hatch can be opened completely 180° with a weld-on hinge, which gives you the space to create a free passage. Handy for wheelchair users or when loading and unloading.
To avoid welding spatter, you have the option of first spraying the welding hinges with the professional welding spray IBFM for welding hinges
This hinge is supplied per 12 pieces.
Packing unit (pieces) | 12 |
Capacity Per 2 (KG) | 100 |

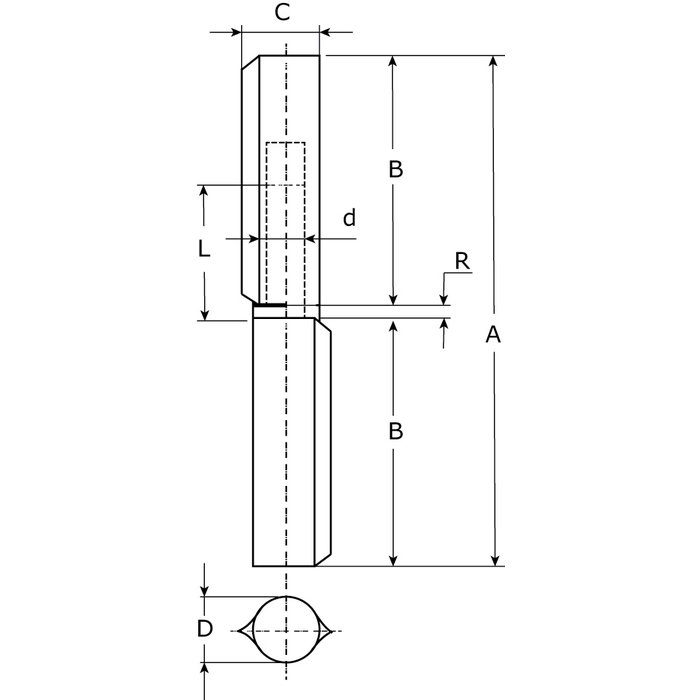

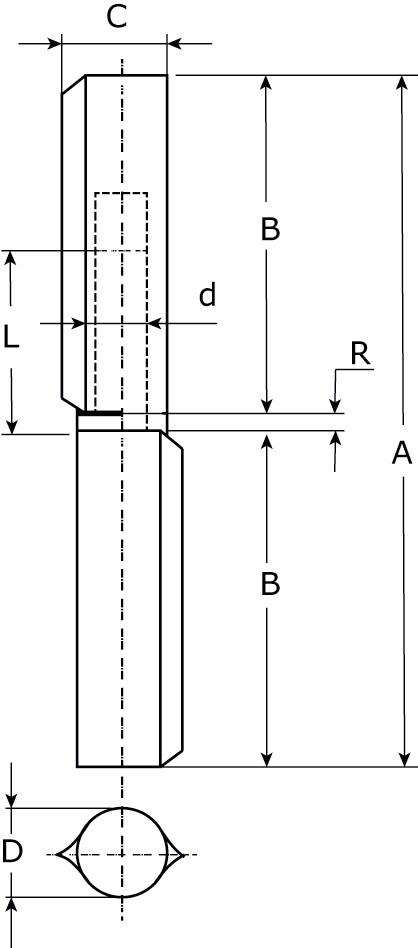

A (mm) |
134-150 |
B (mm) |
67 |
C (mm) |
25 |
D (mm) |
22 |
d (mm) |
14 |
L (mm) |
33-39 |
R (mm) |
N/A |
