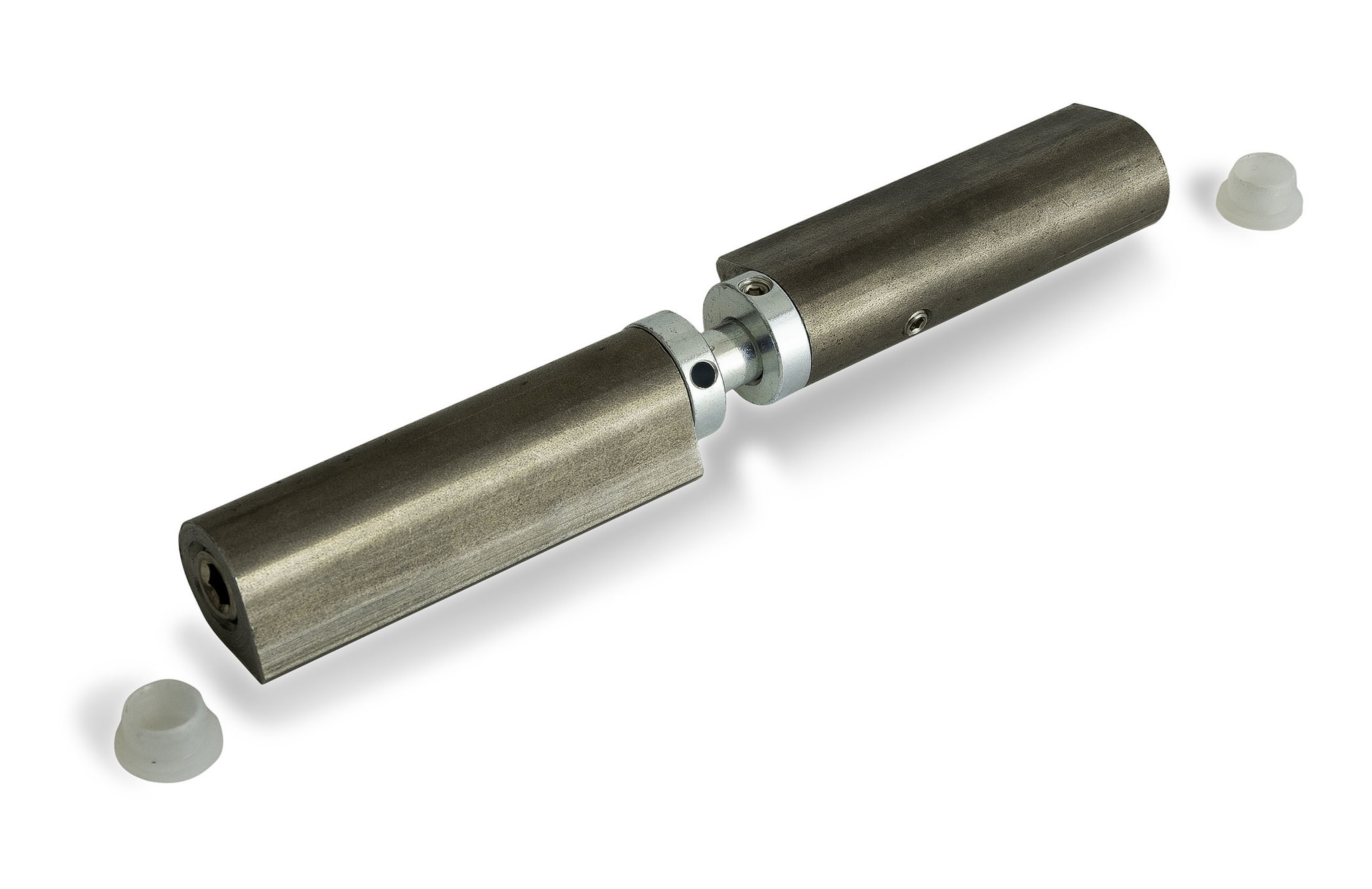

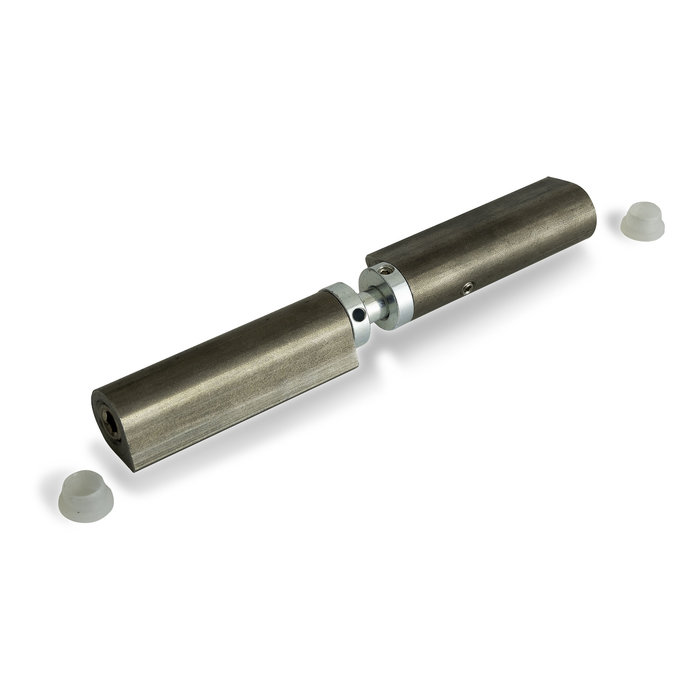

With this 3D adjustable welding hinge you have the greatest possible adjustability. The places where these hinges can be used are very different, just think of emergency exit doors, etc. in all possible places.
With this hinge you are able to precisely adjust your door both horizontally and vertically. Even after prolonged use and due to vibrations, it is possible that a door will droop. You can adjust them perfectly with this hinge.
In addition, a door, window or hatch can be opened completely 180° with a weld-on hinge, which gives you the space to create a free passage. Handy for wheelchair users or when loading and unloading.
To avoid welding spatter, you have the option of first spraying the welding hinges with the professional welding spray IBFM for welding hinges
This hinge is supplied per piece.
Packing unit (pieces) | 1 |
Capacity Per 2 (KG) | 160 |

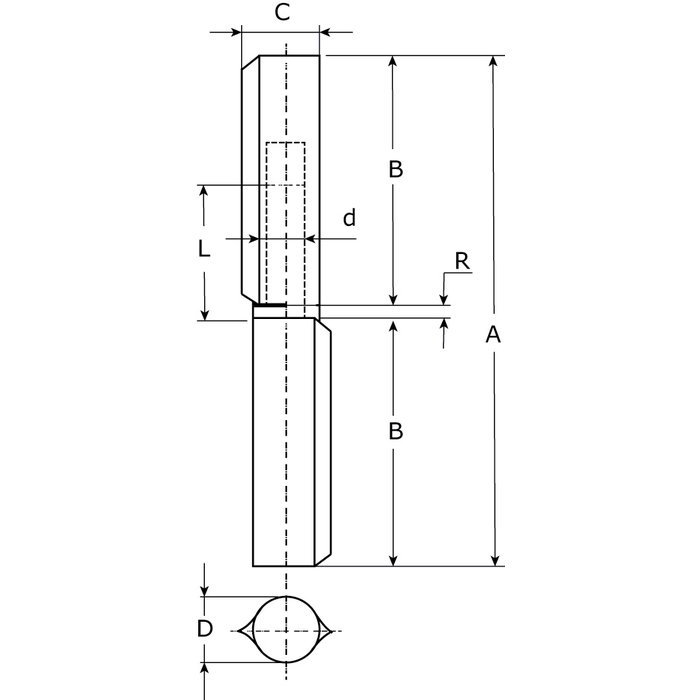

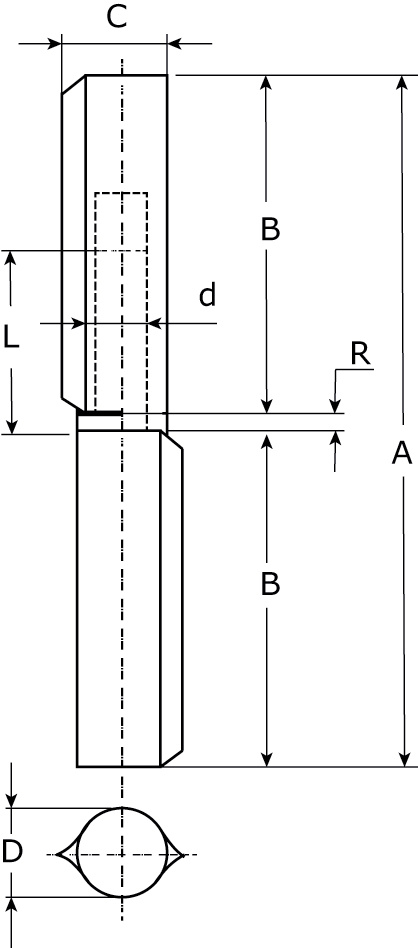

A (mm) |
160 |
B (mm) |
75 |
C (mm) |
25 |
D (mm) |
20 |
d (mm) |
|
L (mm) |
30 |
R (mm) |
13 |
