Description

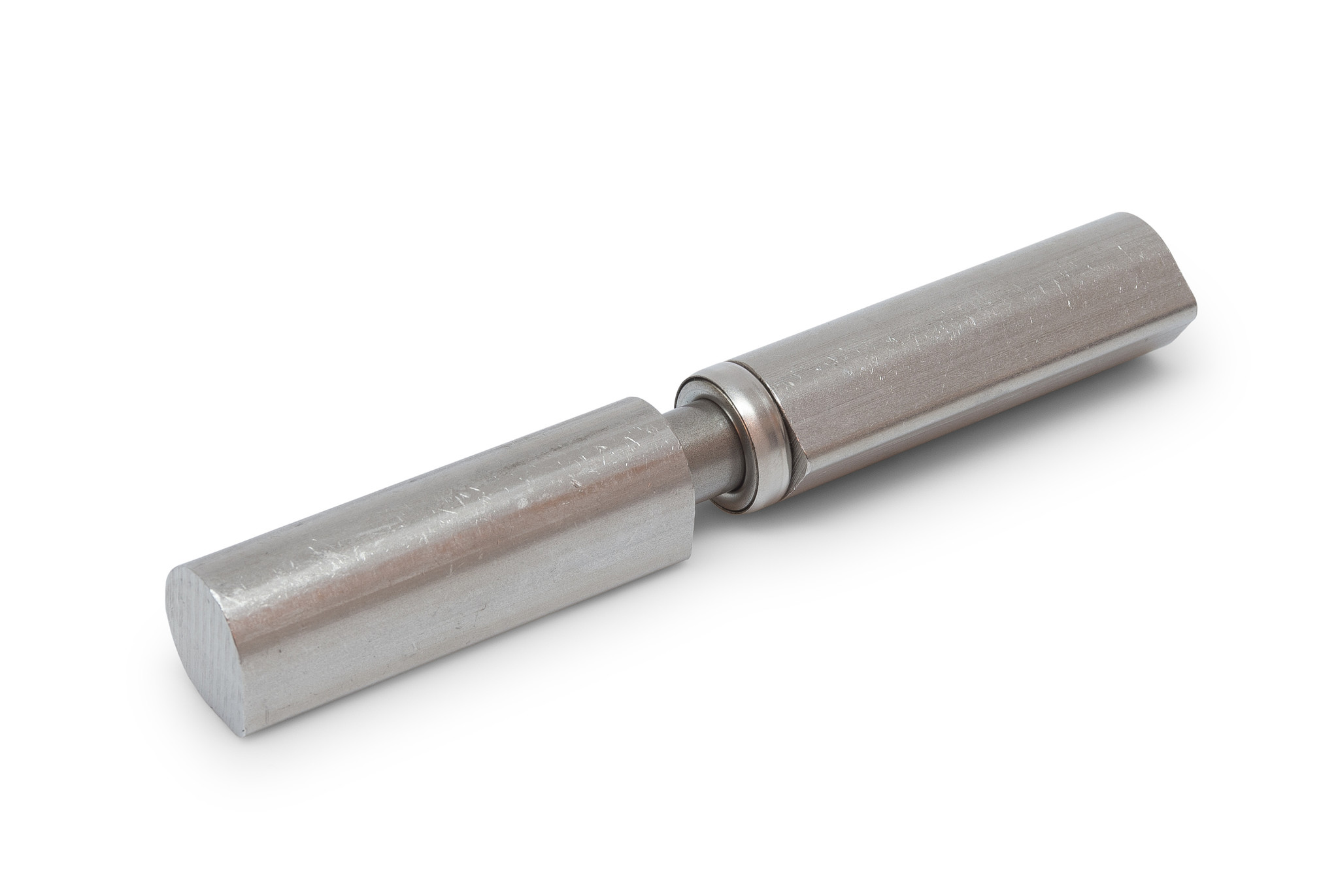

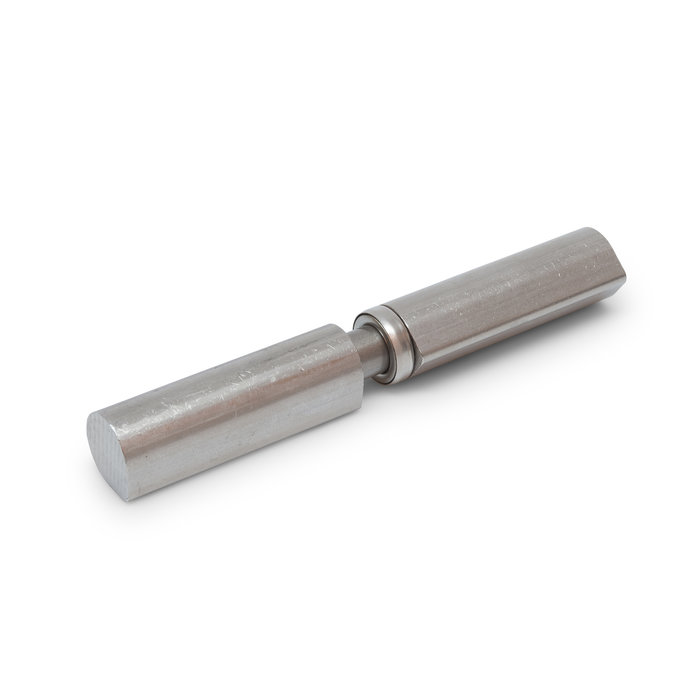

Weld-on hinges with flat head 150x22 mm in stainless steel 304 with stainless steel pin and stainless steel ball bearing - 2 pieces
Article code: DS6010.005.1512
If you have to hang heavy reinforced doors in a humid environment such as on oil rigs or in shipping, these anti-corrosion hinges are the solution. The hinges, which are made of stainless steel quality AISI 304, are easy to weld and equipped with a ball bearing ring that ensures long-term smooth operation.
A major advantage is that by using a weld-on hinge, the door, window or hatch can be opened 180° to create a free passage.
With this versatile weld-on hinge for steel doors, the ball bearing ring and pin are also made of stainless steel.
Prevent welding spatter and use the professional welding spray IBFM for weld-on spacing.
The delivery and price is for one pack of 2 pieces.
Packing unit (pieces) | 2 |
Carrying Capacity Per 2 (KG) | 100 |
A (mm) |
150 |
B (mm) |
73 |
C (mm) |
25 |
D (mm) |
22 |
d (mm) |
14 |
L (mm) |
31 |
R (mm) |
6.5 |
