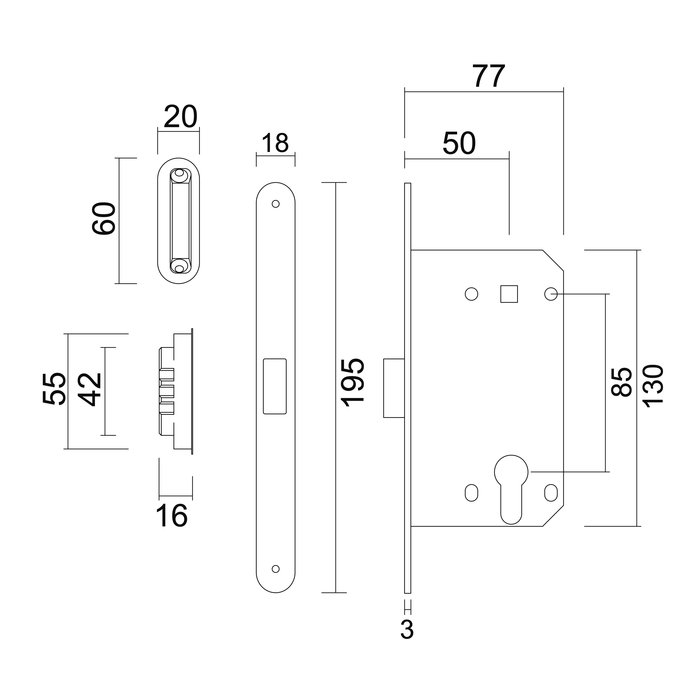

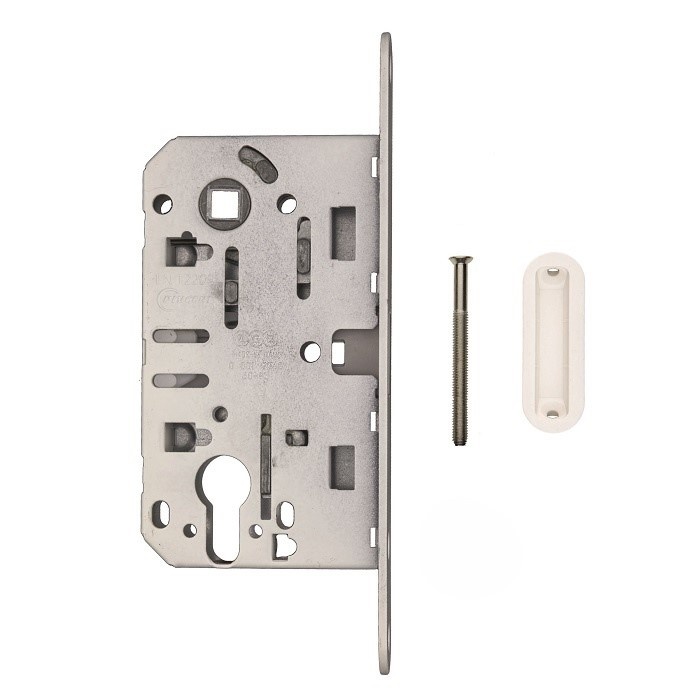

This magnetic lock with cylinder opening from AGB has a white front plate with a width of 18 mm and a height of 195 mm. The axle size is 85 mm and the pin is 50 mm.
Magnetic locks have the advantage that there is no protruding latch, so you can't get caught on it when the door is open. If you have your hands full, you can close the door without having to move the handle.
This white magnetic lock can be used for both left and right turning doors and is supplied including a counter plate.
base | brass |
unit | piece |
colour | white |
front plate dimensions | 195x18 mm |
cylinder axle size | 85 mm |
thorn size | 50 mm |
opening crank hole | 8x8 mm |
mounting material | not included |
