Description
White magnetic lock with an axle size of 90mm and a mandrel of 50mm. White counter plate of 22x195mm.
Article code: 1191100

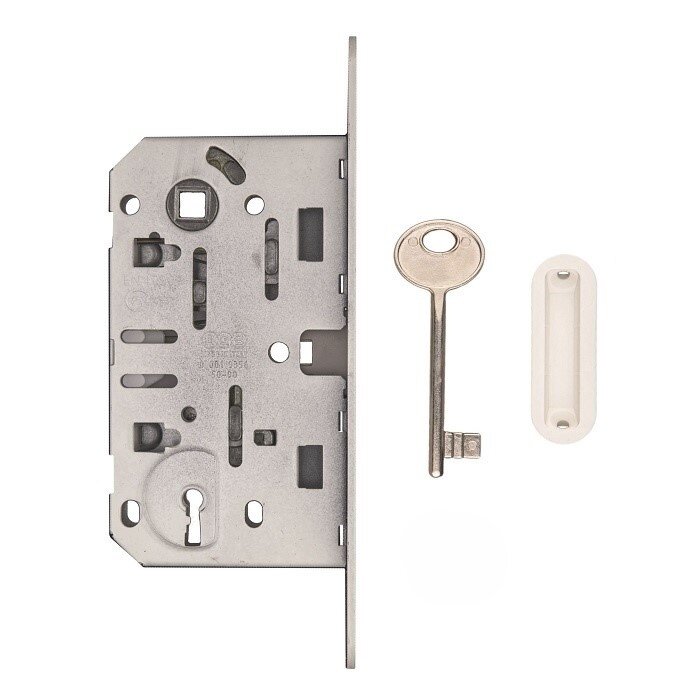

This magnetic lock from AGB has a white front plate with a width of 22 mm and a height of 195 mm. The shaft size is 90 mm and the mandrel is 50 mm.
Magnetic locks have the advantage that no latch protrudes, so that people cannot get caught behind it when the door is open. If you have your hands full, you can close the door without having to move the handle.
This white magnetic lock can be used for both left-hand and right-hand doors and is supplied with 1 key and counter plate.
base | brass |
unit | piece |
colour | white |

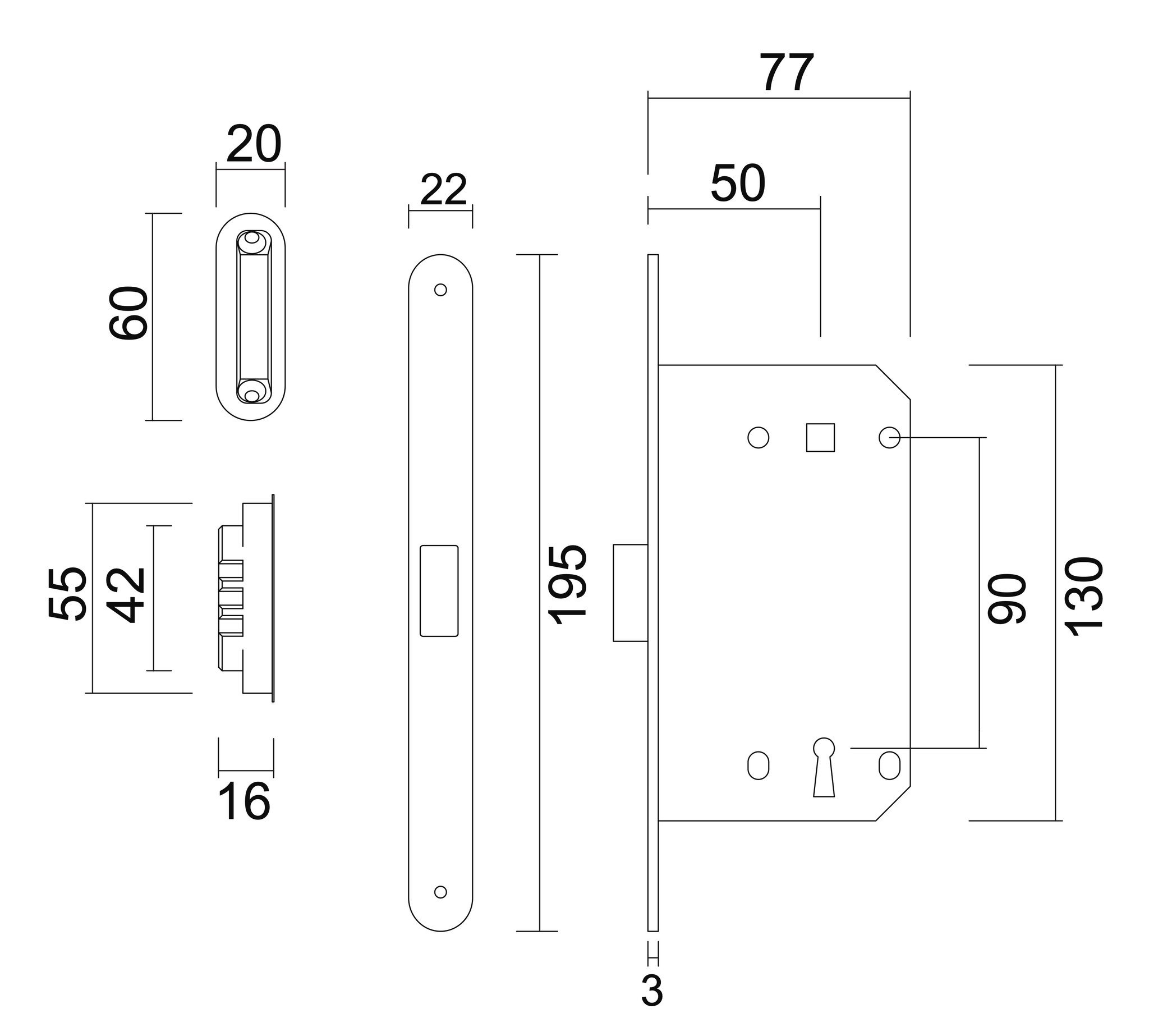

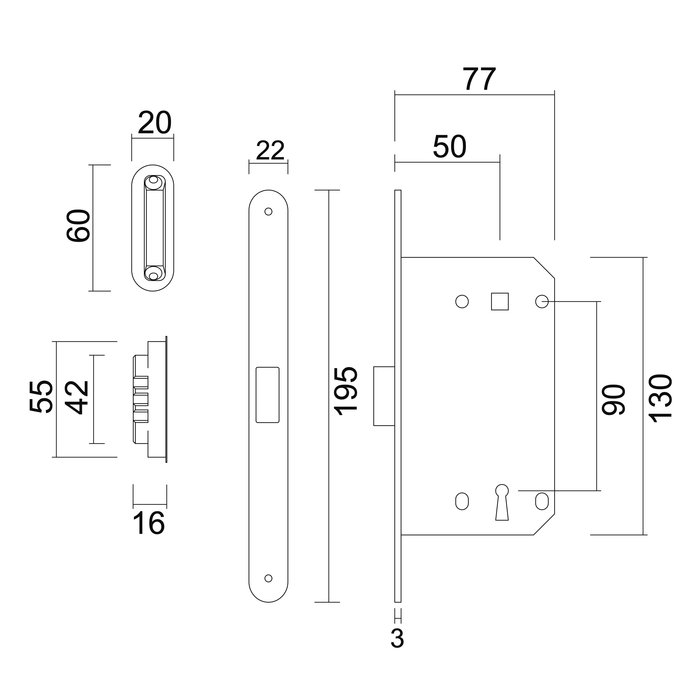

front plate dimensions | 195x22mm |
axle size key | 90mm |
backset | 50mm |
crank hole opening | 8x8mm |
mounting material | included |
