Description

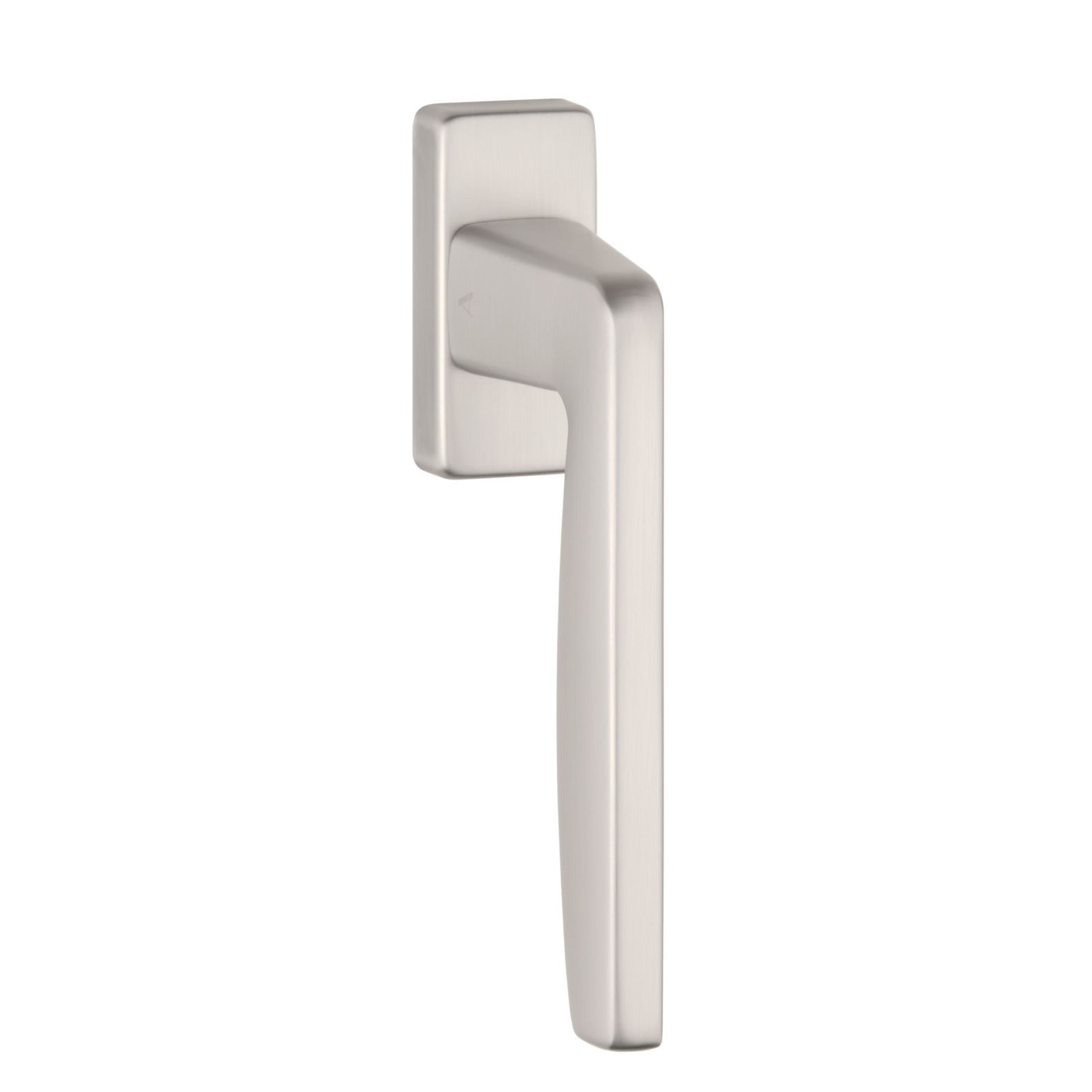

APRILE window handle ERBA on a rectangular rosette with a flat handle of 18 x 14 mm in a matt nickel version
Article code: AT O ERBA Q MSN-L
The ERBA nickel window handle in turn-tilt design has a flat L-shaped handle that is straight at the front and curved at the back. This makes this window handle extra comfortable to hold
The window handle consists of solid zamak finished with an anodized matt nickel coating.

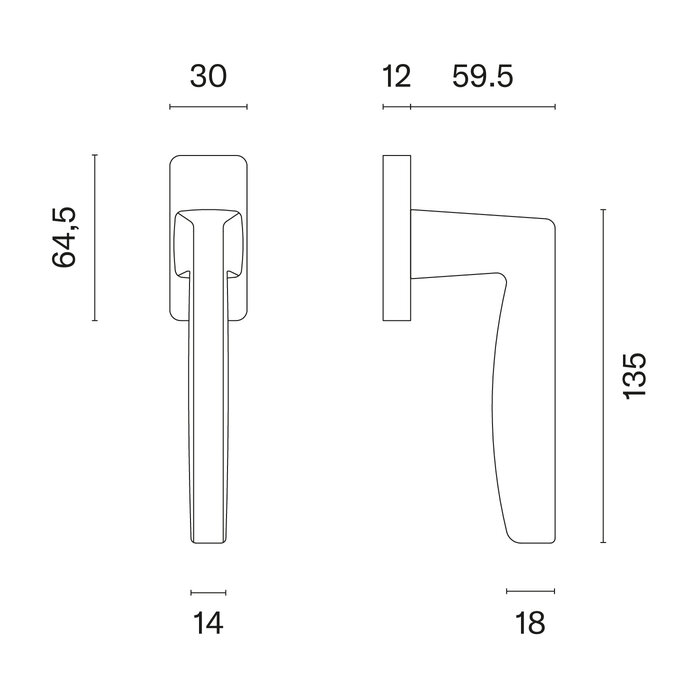

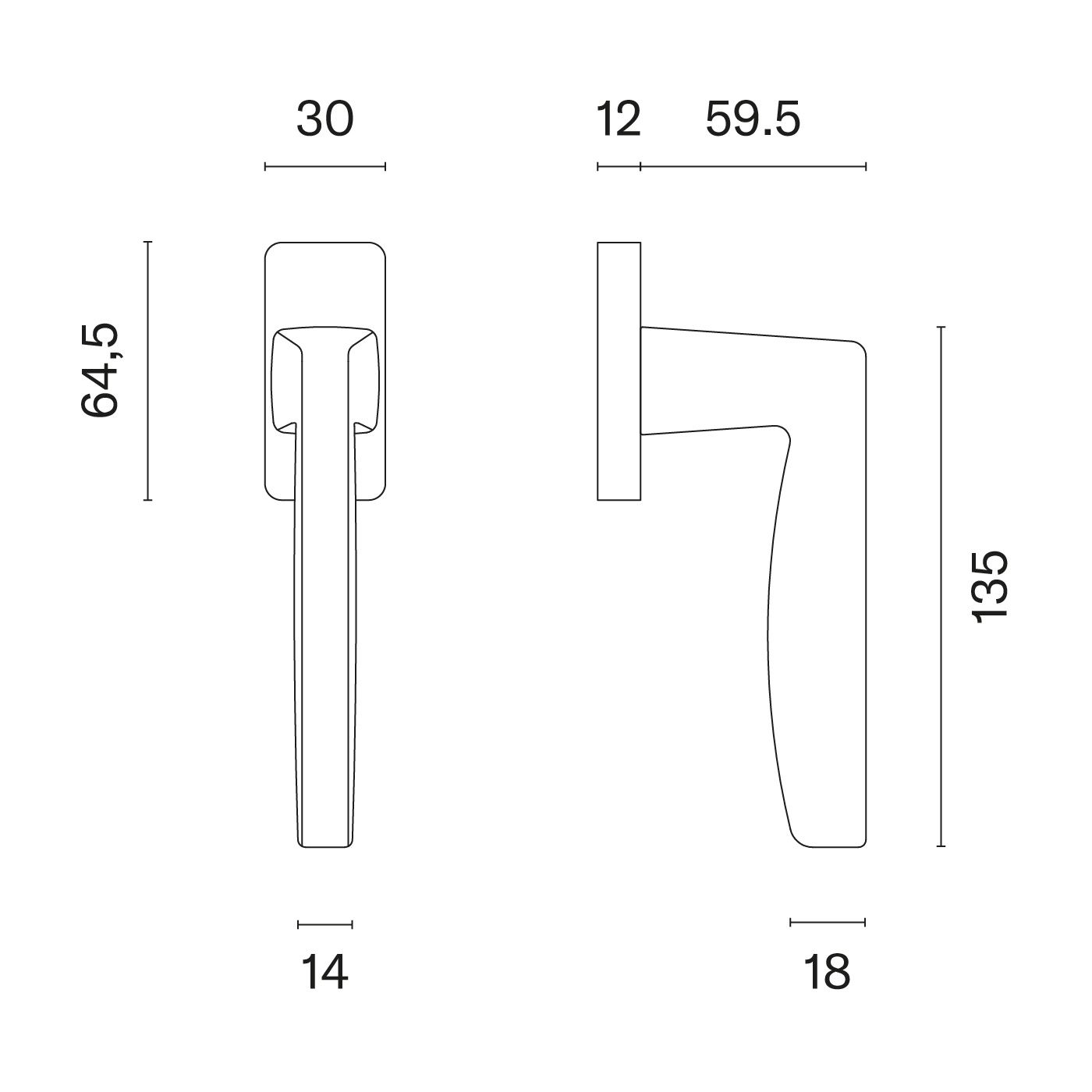

The 18x14 mm handle is mounted on a rectangular rosette of 64.5x30 mm.
This massive window handle with the Aprile logo is supplied per piece including mounting materials and pin of 7x7x35 mm. The mounting holes are spaced 43 mm apart
Combine these window handles with the matching door handles from APRILE and your interior is finished in style.
Choose between a left or right window handle at the top of the scrolling menu!
Both window handles rotate 360°. The only difference is the location of the Aprile logo.
A left window handle has the Aprile logo on the left, a right window handle has the Aprile logo on the right.
| base | solid zamak |
| performance | turn-tilt function |
| colour | matt nickel (anodized) |
| rosette dimensions | 64.5x30x12mm |
| depth | 71.5mm |
| drilling distance | 43mm |
| marker | 7x7x35mm |
| handle size | 18x14mm |
| mounting material | 2 bolts M5 x 40 mm included |
